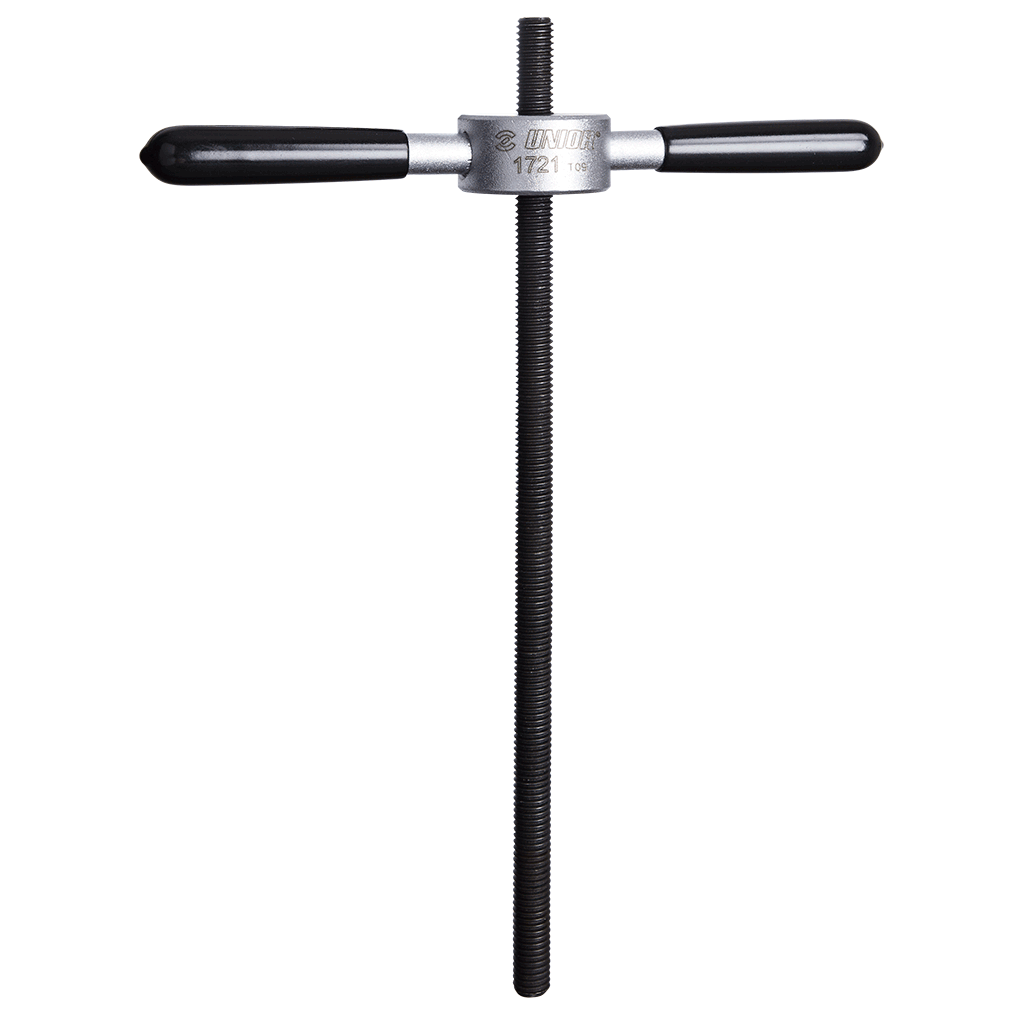

Bearing Press Handle and Shaft

The handle and shaft are the rebuildable spine of the Unior Bearing Press 1721 family. Everything else in the press kit (drifts, protection plates, quick-release handles) lives on the bench in a tray or in a parts drawer; the handle and shaft is the part that takes every load stroke and the part that, over enough years of bench use, eventually needs replacing. The 1721.4 brings a press back to factory-spec working life without forcing a new press purchase.

What this is for

The 1721.4 is the threaded shaft and load-bearing handle that drives the press's mechanical advantage. The shaft threads through the press body, the drift sits on the working end, and the handle turns the shaft to drive the drift into the bearing. Three failure modes send a mechanic looking for the 1721.4:

1. The shaft's threads are damaged. Cross-threading at the start of a press stroke (usually on a bearing that wasn't seated square in the bore before pressing started) deforms the shaft thread and the press starts binding mid-stroke.
2. The handle bar has bent. Long handles on heavy presses see substantial cantilever load; a handle that's been used to break a stuck BB cup before transitioning back to bearing-press work occasionally takes a permanent set.
3. The press is being rebuilt. A press body that's still sound but has worn drift sockets, sticky threads, or a tired QR mechanism can be brought back to factory feel by replacing the wearable parts. The handle and shaft is the largest of those.

Material and construction

• Shaft: premium flex plus carbon steel; hardened and tempered for fatigue resistance under repeated thread engagement
• Handle: chrome-plated steel bar with bonded grip; sized for hand torque without slipping under load
• Thread spec: matches the 1721 press body original spec

Compatibility

The 1721.4 fits all current 1721-family press bodies. The thread spec has not changed across the press's production history, so a replacement handle and shaft retrofits a press that's been on the bench for years. The Quick-release Handle 1721.3 lives on the opposite end and is the faster-engagement alternative for shops that change bearings daily.

Built in Zreče, Slovenia

Unior has been forging hand tools in Zreče since 1919, and is the official technical partner of multiple World Tour and downhill teams. The handle and shaft is the part of the 1721 press we don't usually expect to wear out, which is what makes it worth replacing when it does. A press body that's still in spec earns another decade of service when the part that does the work gets renewed.

Pro tip from our mechanics

A bearing press that starts feeling sticky mid-stroke usually has crud in the shaft threads, not a worn shaft itself. Wipe the threads down with a clean rag and a drop of light oil before you assume the shaft needs replacement. If the stick persists after a thread clean, then the shaft is genuinely tired and the 1721.4 is the right call. For where this fits in the bigger press workflow, see Bearing and headset service: a workshop guide →
