Phillips Screwdriver

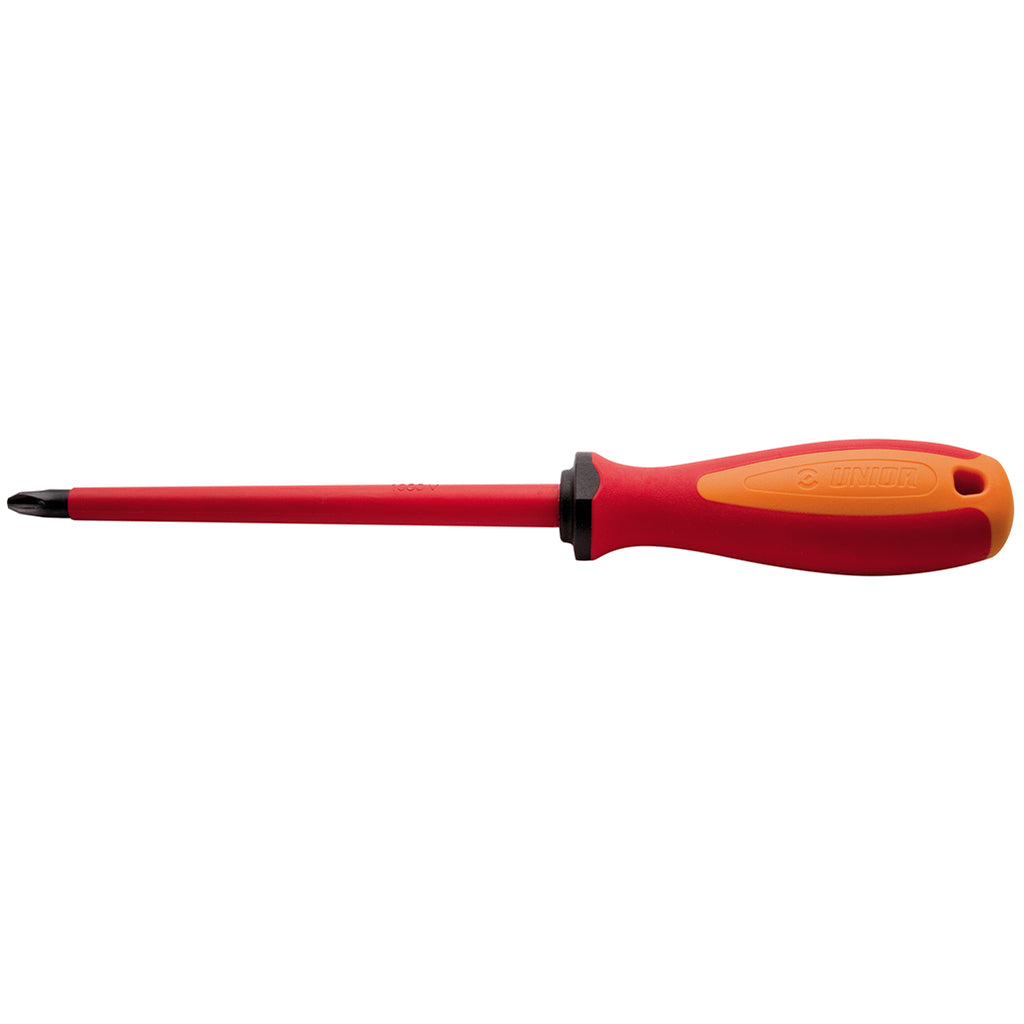

Almost every cover, housing, and shroud on a modern e-bike (motor side covers, display-unit backs, controller compartments, battery-mount face plates) is held shut by Phillips screws. Most are fine to undo with any workshop driver; the ones close to live electrical, or that you can't fully de-energize before opening, are the ones the 613VDETBI is built for. It's the Unior workshop Phillips with VDE insulation added; same blade geometry and three-component handle, made to EN IEC 60900.

When you reach for it

The Phillips-head fastener is the dominant cover-plate fastener on e-bike electronics. The 613VDETBI is the driver you keep in the e-bike bay for two situations specifically: diagnostic work where the battery is in the bike and the cover needs to come off to probe a circuit, and motor-side cover removal where the harness is still attached and the work area is millimeters from a conductor. A standard workshop Phillips would do the job most of the time without incident. Most of the time isn't all of the time, and the certification is what makes “most” into “every.”

How it differs from the standard 613

The standard Unior 613 cross-tip is built around a hardened, tempered blade with a blackened tip for wear resistance. The 613VDETBI carries the same blade geometry, the same three-component handle. The difference is the insulation: the blade is insulated up to the working tip, and the handle is made to EN IEC 60900. The cross-tip geometry doesn't change; it's the workshop Phillips with the electrical certification, not a thinner electrician's-only profile.

Specs

• Made to ISO 8764-1/2 and EN IEC 60900; Unior states live circuits up to a 1000-volt potential
• Premium hard chrome vanadium steel blade, entirely hardened and tempered, blackened tip
• Ergonomic three-component handle; official usage notes a large hand contact area for more torque
• Three-component TBI handle with hanging hole; official name is Crosstip (PH) screwdriver with insulated blade, VDE TBI
• Tip size and type marked on the handle for quick identification

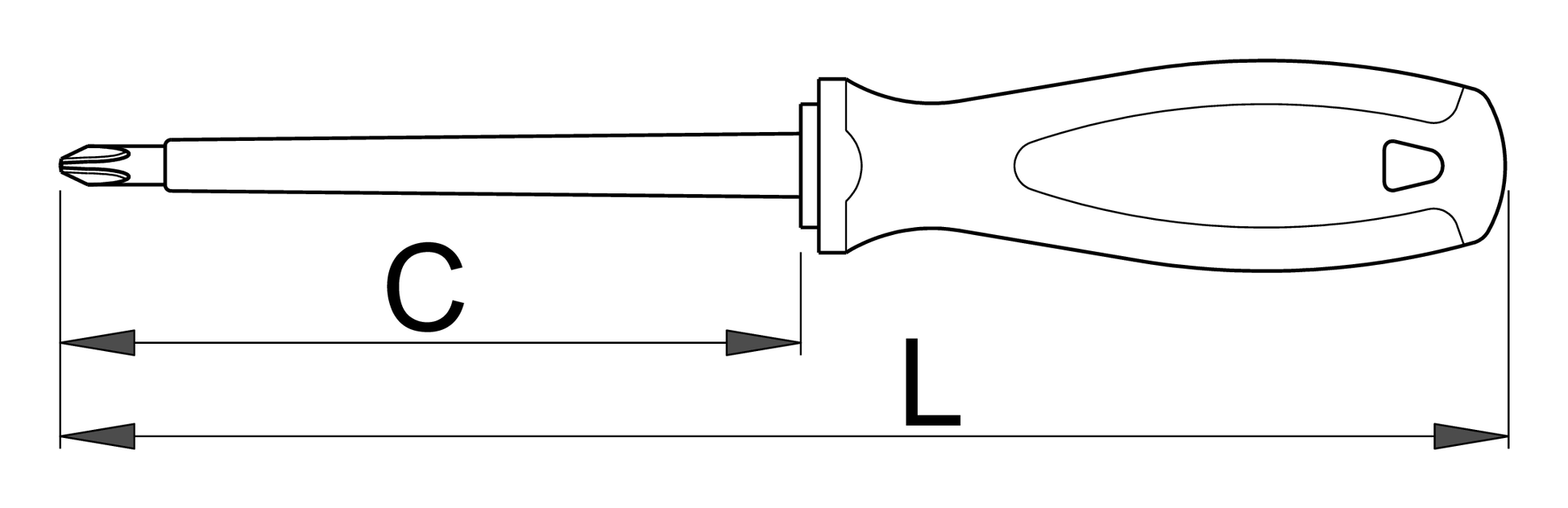

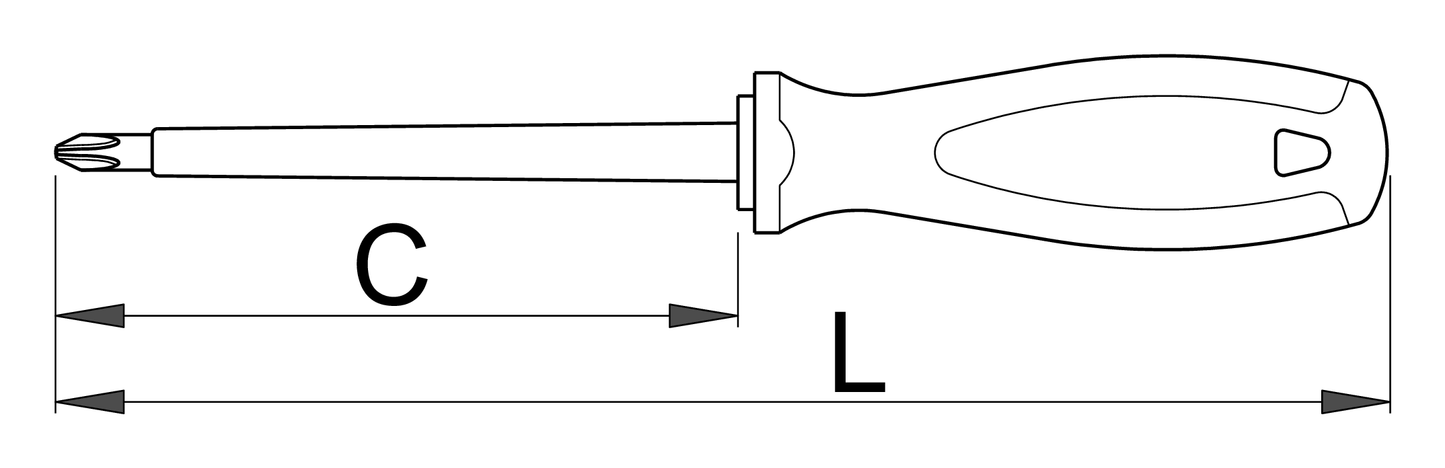

• Article 613VDETBI. US sizes: PH0 (C 60 mm, L 145 mm, 34 g), PH1 (80 / 180 mm, 60 g), PH2 (100 / 210 mm, 94 g)

Built in Zreče, Slovenia

Unior has been forging hand tools in Zreče since 1919, and sponsors professional road and mountain-bike race teams. The 613VDETBI is the VDE TBI variant of Unior's 613 crosstip body, made to ISO 8764-1/2 and EN IEC 60900. The PH tip geometry is the workshop Phillips, not a thinner electrician-only profile.

Pro tip from our mechanics

The Phillips VDE driver gets used more often than the matched flat-blade simply because more e-bike electrical fasteners are cross-head. Together with the flat-blade 603VDETBI, the small electrician's driver, and the diagonal cutters, it forms the four-tool VDE set we keep ready in the e-bike bay. The e-bike service workflow explains which tool maps to which job and why VDE certification matters in the first place: Servicing an e-bike: what's different from an analog bike →

FAQ

Which Phillips sizes does Unior USA sell on the 613VDETBI? Three: PH0 (code 616443, blade C 60 mm, overall L 145 mm, 34 g), PH1 (616444, 80 / 180 mm, 60 g), and PH2 (616445, 100 / 210 mm, 94 g). Unior's official family also lists PH3 and PH4; those two codes are not on this page.

What does the VDE / insulation on the 613VDETBI actually cover? Unior makes the 613VDETBI to ISO 8764-1/2 and EN IEC 60900 (the page also cites DIN EN IEC 60900 (VDE 0682-201):2019-04). Official copy: live circuits with up to a 1000-volt potential, and every tool gets a full 10 kV high-voltage test. Official FAQ: VDE tools are not classified as PPE under EU rules. Inspect the insulation before any live work.

Can I put a wrench on the black collar for extra torque? Unior does not list a wrench bolster on this article. Official safety tips say not to use pliers on a screwdriver handle, and that a wrench belongs only on the square shank or bolster of a screwdriver especially designed for that purpose. Official usage copy points at the large hand contact area of the three-component handle for torque.

How is this different from the 603VDETBI flat-blade screwdriver? Same VDE TBI insulated-screwdriver family, different tip. 613VDETBI is Phillips (PH / crosstip). 603VDETBI is the slotted / flat-blade electrician's driver. Unior's published marks-approval PDF lists both type series. Neither article has official spare blades or replacement handles.
