Crown Race Setter

A new fork install ends with one of two outcomes. Either the crown race seats square and the headset preloads cleanly, or the race seats cocked, the headset rocks for the life of the fork, and the rider feels it every time the steerer loads under braking. The Crown Race Setter 1683/5A separates the outcomes. The job is mechanically simple: drive the race down the steerer onto its seat, square and seated fully. The difficulty is that square and fully seated are exactly what you cannot easily verify after the fact.

What the tool does

The setter is a sleeve sized to the steerer with an internal shoulder that bears on the crown race. Drop the setter over the steerer until the shoulder sits on the race, then strike the setter's top face squarely with a hammer. The race slides down onto the seat with each hit and seats fully when it bottoms out. The sleeve keeps the race aligned with the steerer's axis through the entire travel; you cannot drive it cocked.

We pair this tool with the Unior 819A Dead Blow Hammer. The dead-blow head transfers force without rebound, which means the second strike lands where you intended and not three degrees off. A claw hammer bounces back and tilts the race; a brass hammer does better but still rebounds.

What changed in the latest version

The setter accepts steerer tubes up to 380 mm, which covers any current MTB or hybrid steerer plus long tandem steerers. Compared with the earlier 1683/4A, the tube finish moved from blackened steel to zinc plating (ISO 2081 Fe/Zn8/B), which drops the oil-wipe upkeep a black-oxide finish wants to stay rust-free on the bench. The adapters remain black-oxide (DIN 50938).

Compatibility

Adapters included for crown races of 1″, 1 1/8″, 1 1/4″, and 1 1/2″. Tapered steerers run through the same setter; pick the adapter matched to the race size at the crown.

Specs

• Main tube: 319 mm long, 46 mm diameter; accepts steerers up to 380 mm; 2,070 g with adapters
• Adapter sizes: 1″, 1 1/8″, 1 1/4″, 1 1/2″
• Finish: zinc-plated tube (ISO 2081), black-oxide adapters (DIN 50938)
• Recommended hammer: Unior 819A Dead Blow Hammer
• Warranty: lifetime
• Made in Slovenia by Unior

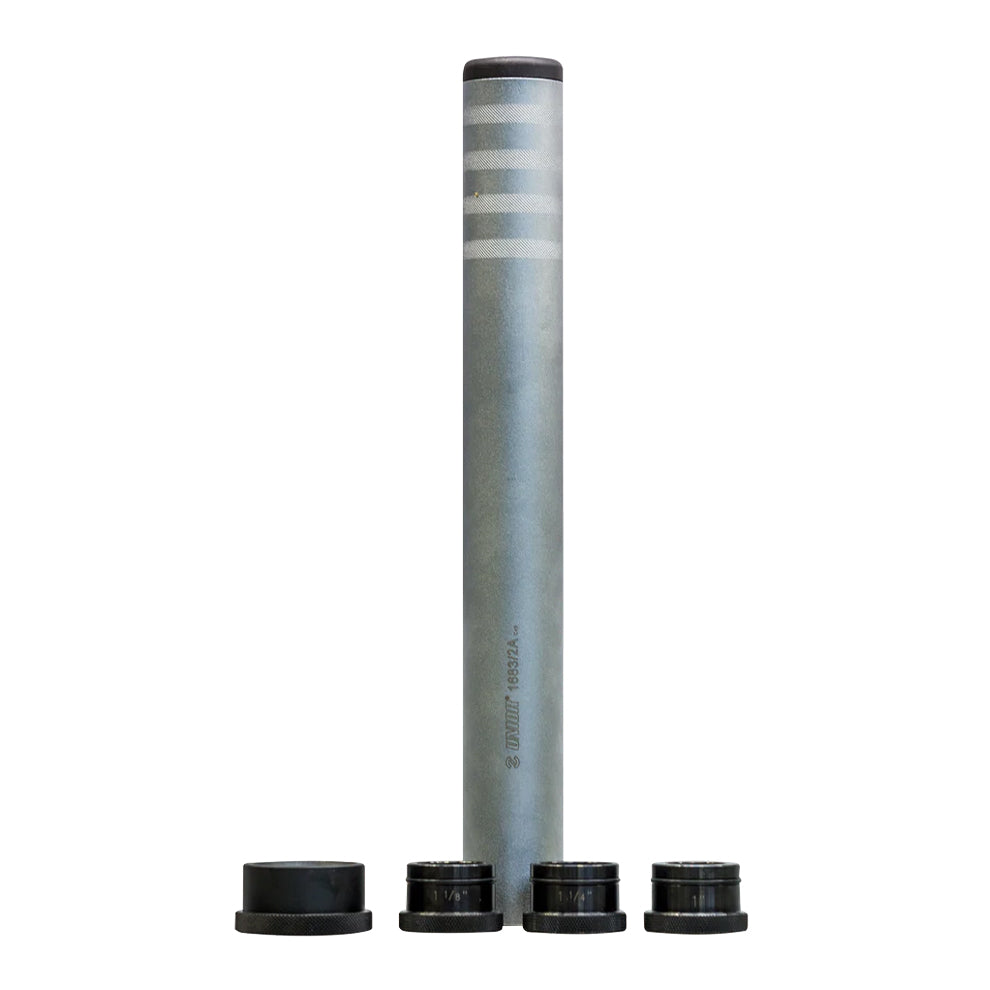

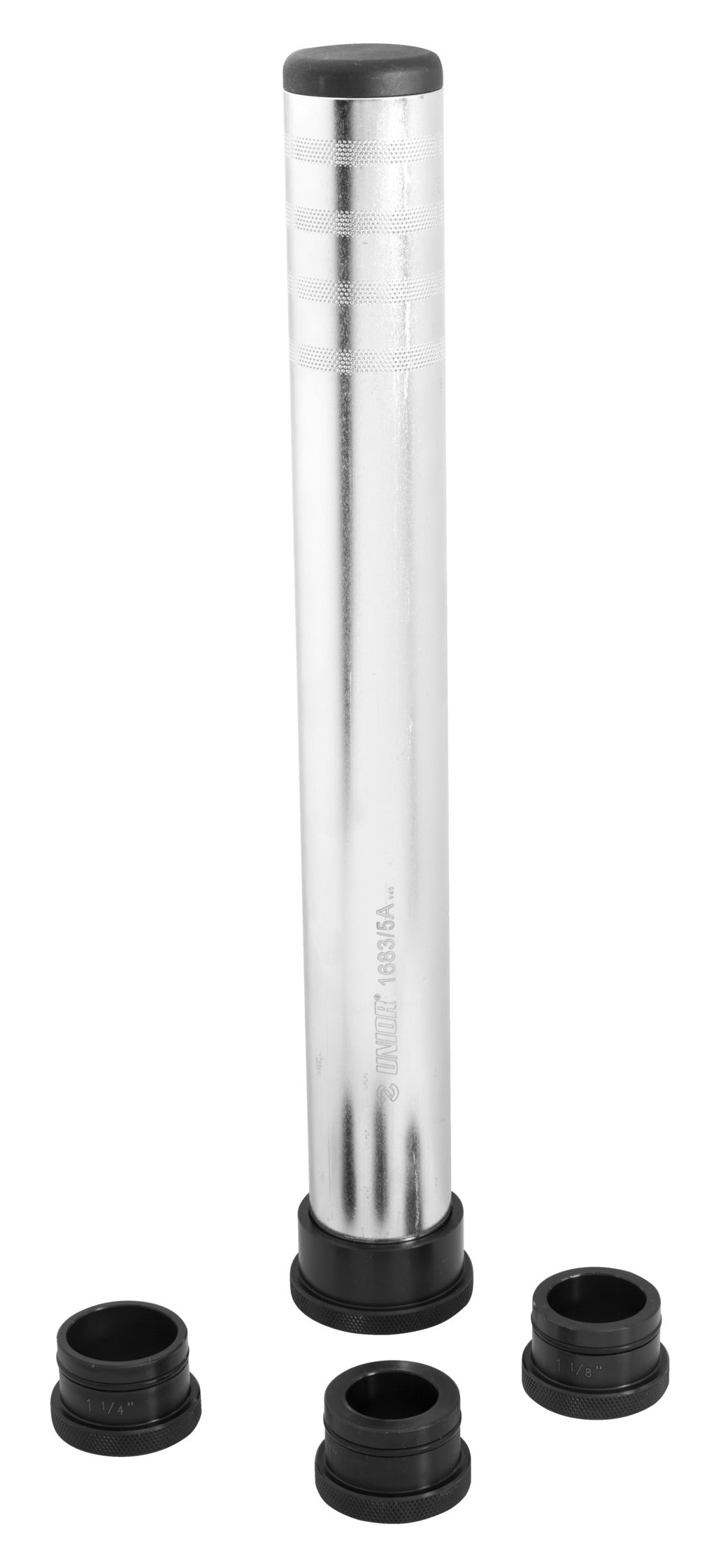

Includes: Main tube body, full set of crown-race adapters for the four sizes above.

Made in Slovenia, since 1919

Unior has been forging hand tools in Zreče since 1919, and sponsors professional road and mountain-bike race teams. The 1683/5A's lifetime warranty is the corporate guarantee on a tool that gets used once per fork install and has to last a workshop a career.

Pro tip from our mechanics

You'll feel the change in the hammer's report when the race seats; the dull thud goes solid. Stop hitting at that point. A few extra hits past full seating doesn't make the race more seated; it just transmits force into the fork's crown, which is the one place on a fork you don't want to be pounding without a reason. If the race seats partway and stops, the seat may need cleaning rather than more force. Pull the race off, wipe the seat with a clean rag, and try again. Forcing a race onto a contaminated seat is how seats get gouged.

The setter is the third tool in a chain (fork prep, old-race pull, new-race set, bearing press, star nut) that runs every frame-and-fork build. The full chain is documented in our walk-through: Frame prep: head tube, crown race, and star nut work →

FAQ

Which steerer and crown race sizes does the 1683/5A cover? It ships with four black-oxide adapters for 1″, 1 1/8″, 1 1/4″, and 1 1/2″ crown races, and it accepts steerer tubes up to 380 mm long. On a tapered steerer, pick the adapter that matches the race seat at the crown, not the tube diameter at the top.

What hammer should I use with the crown race setter? Unior specifies its 819A Dead Blow Hammer. A dead-blow head transfers the strike without rebound, so the setter stays square on the race between hits. We stock the 819A alongside the setter.

Are replacement adapters available if one is lost or worn? Yes. Unior lists a spare adapter for the 1683/5A as a separate service part, so a lost or worn size ring does not retire the tool. Each ring is marked with its size.

What is the 1683/5A made of, and how is it finished? The tool is premium plus carbon steel. The main tube is zinc plated to ISO 2081 Fe/Zn8/B and the adapters are blackened to DIN 50938. The set weighs 2,070 g and carries Unior's lifetime warranty.
