Headset Cup Remover 1", 1-1/8", 1-1/4"

A headset cup that's been seated for five years doesn't release with anything you'd reach for first. The head tube is shaped so the cup's outer face is recessed below the bearing skirt; you can't reach behind the cup with a drift or a punch from the other end of the head tube without going through the steerer hole, where there's never enough room for a tool. The mechanic-grade answer is the headset cup remover: a carbon-steel flange that drops through the cup's inside diameter, then springs out past the back skirt of the cup so you can tap the cup out from inside the head tube. The 1681/4 covers the 1.0 inch through 1.25 inch cup-ID range.

How it works

The remover is a long shaft with carbon-steel spring flanges at the working end. Process:

1. Pass the working end of the remover through the cup's inside diameter from the front of the head tube. The flanges fold flat against the shaft as they pass through the cup bore.
2. Once the flanges clear the back of the cup, the spring tension snaps them outward against the cup's back skirt.
3. From the opposite end of the head tube, tap the remover with a hammer. Each tap drives the cup outward, with the spring flanges carrying the load on the cup skirt.

The tool grabs the cup from behind, not from in front; the cup comes out with even pressure across its back face instead of being pried unevenly. That matters because a cup levered out with a punch and screwdriver almost always damages the head tube's bore on the way out, and a damaged bore won't seat a fresh cup straight on the next install.

Spec

• Material: premium flex plus carbon steel, blackened to DIN 50938; the flanges are spring blades that flex in and snap back out to engage the cup
• Range: 1.0 inch through 1.25 inch cup ID

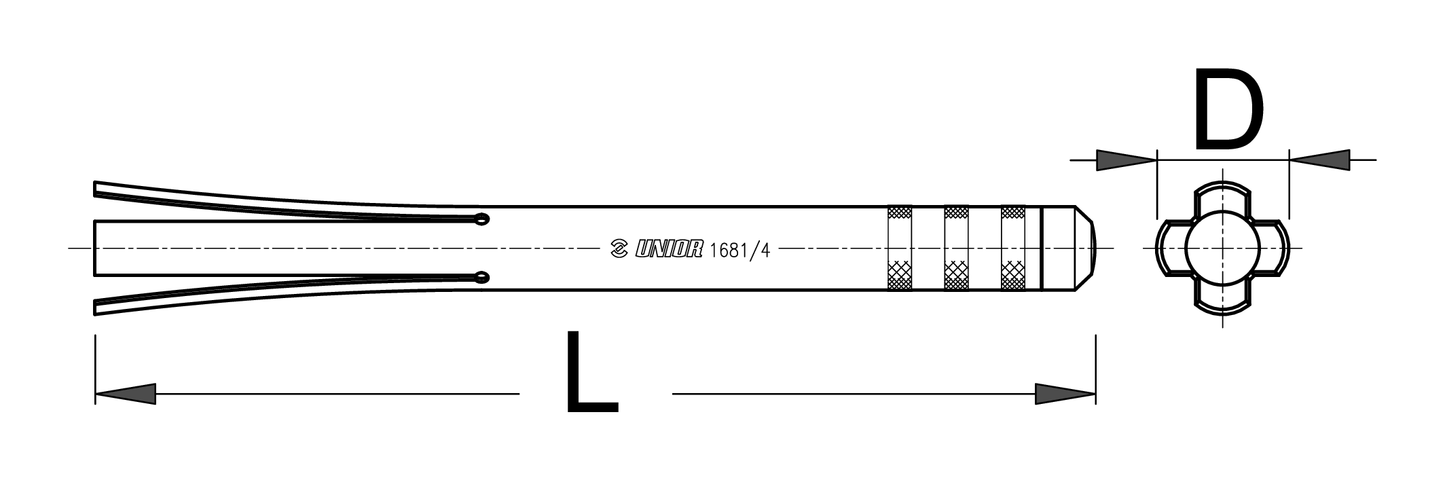

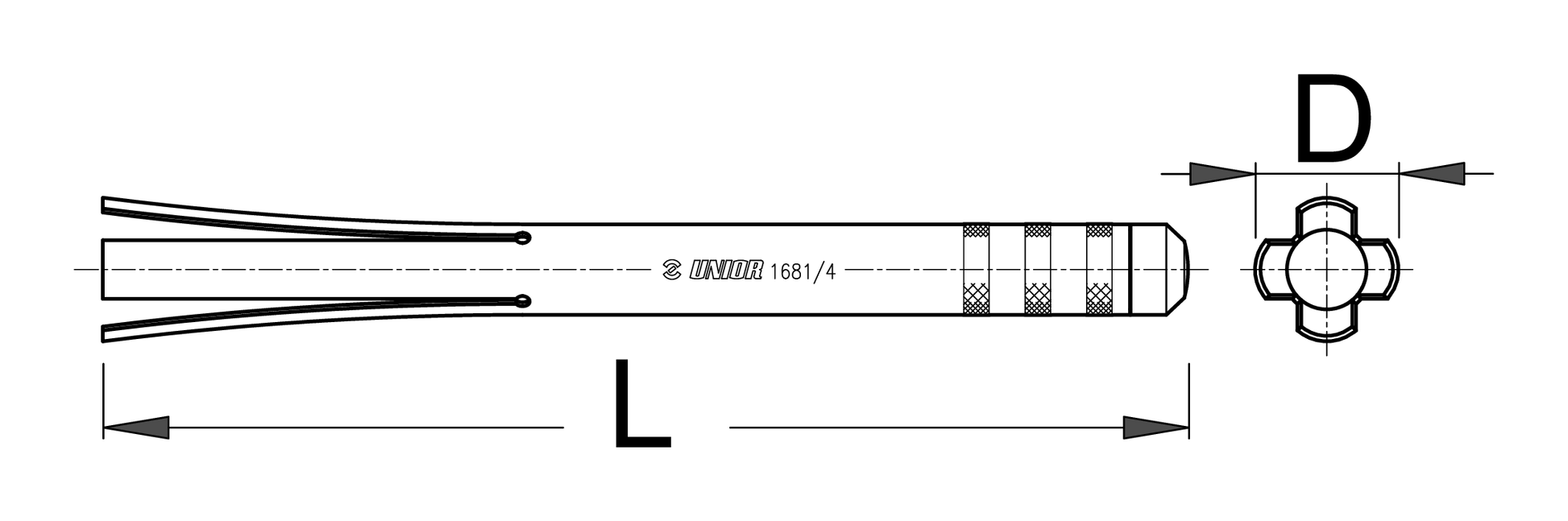

• Body: 300 mm overall with a 40 mm head, 327 g; long enough to pass through standard head tube lengths from above or below

Compatibility

The 1681/4 fits the 1.0 inch through 1.25 inch head-tube cup-ID range. This range covers:

• 1 inch threadless and threaded headsets (most legacy road and MTB designs)
• 1-1/8 inch threadless headsets (the most common current standard on road and gravel)
• 1-1/4 inch headsets (some current and recent road and MTB designs)

For the larger 1.25 inch through 1.5 inch tapered range (most current MTB and gravel), use the Headset Cup Remover 1681.1/4.

Built in Zreče, Slovenia

Unior has been forging hand tools in Zreče since 1919, and sponsors professional road and mountain-bike race teams. The 1681/4 is the cup-remover spec that's been in the Unior catalog longer than most of the headsets it pulls have existed. The carbon-steel flanges hold their spring action across decades of bench use; the body absorbs hammer impact without taking a permanent set.

Pro tip from our mechanics

Tap the remover with a non-bouncing hammer (a dead-blow, or a plastic-tipped mallet) rather than a steel-faced hammer. The cup comes out in smaller, more controlled increments, and there's no risk of the impact bouncing the remover off the cup mid-strike and landing the tool on the head tube paint. Where the cup-removal step sits in a full headset rebuild: Bearing and headset service: a workshop guide →

FAQ

What's the difference between the 1681/4 and the 1681.1/4? The 1681/4 pulls pressed cups on 1", 1-1/8", and 1-1/4" headsets. The 1681.1/4 covers 1-1/4" through 1-1/2", the size you need for the lower cup on a modern tapered head tube. Pick by the cup you're pulling; at 1-1/4" the two overlap.

Does it work on integrated headsets? Integrated (IS) frames don't need it: their bearings drop into machined cradles inside the head tube, so there is no pressed cup to remove. The 1681/4 is for pressed-cup systems, meaning traditional external-cup (EC) and zero-stack (ZS) head tubes.

Why not just drive the cups out with a punch or screwdriver? A punch loads one edge of the cup at a time, and on most head tubes the bearing skirt blocks a clean line to the cup's back face. The 1681/4's flanges spring out behind the cup and carry each hammer tap across the whole skirt, so the cup walks out square instead of gouging the bore.

What is the Headset Cup Remover made of, and how big is it? Premium flex plus carbon steel, blackened to the DIN 50938 standard. The tool is 300 mm long with a 40 mm head and weighs 327 g. Article 1681/4, SKU 616291, covered by Unior's lifetime warranty.
