Headset Bearing Cup Press

A headset cup pressed in even slightly off-square wears unevenly for the life of the bike. The lower bearing carries the steering load at the angle the cup defined on install; if the cup went in tilted half a degree, the bearing rolls at half a degree of misalignment forever. The fix happens before the press completes, not after. A press that pulls the cup in straight, with the load spread evenly across the cup's outer face and with the press body's mechanical advantage doing the work instead of a hammer, is the workshop tool that owns this job. The 1680/4 is the press built for it.

How it works

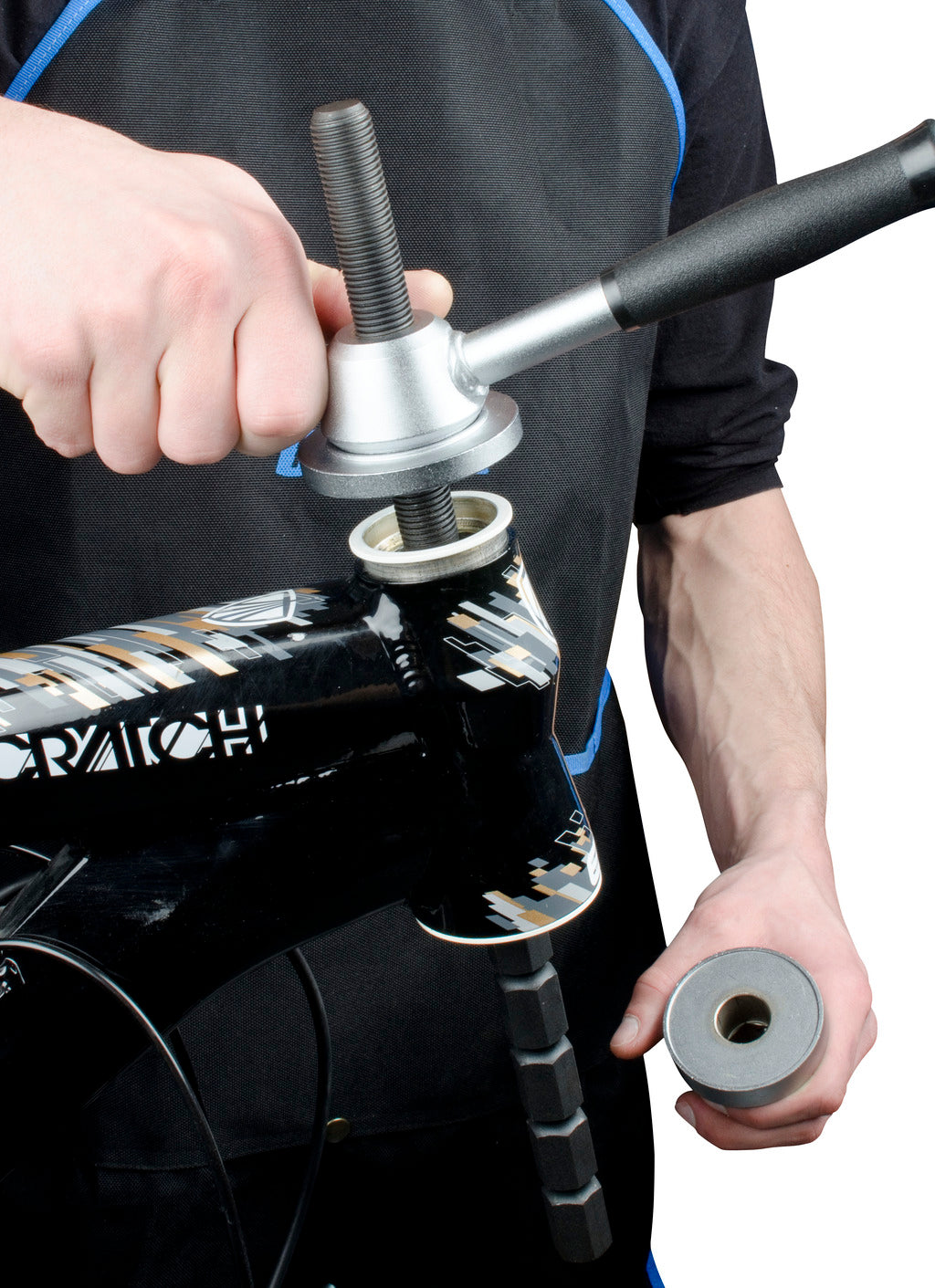

The 1680/4 is a long threaded press that drops through the head tube from both ends. The lower head sits inside the lower cup, the upper head sits inside the upper cup, and the threaded shaft connects them. Turning the press handle draws the two heads toward each other, which presses both cups into the head tube simultaneously and squarely.

Two features distinguish the 1680 from a bench-vise-and-block-of-wood improvised press:

1. Thrust bearing at the top. As the press handle turns and the shaft rotates, the thrust bearing decouples the handle's rotation from the cup's seating. The cup goes in along the shaft's axial direction without being twisted by the handle's torque. No cup-rotation-induced misalignment at the moment of seating.
2. Quick-release on the lower head. The threaded shaft is long enough to span any current head tube, but threading the full length on every press cycle is bench time you don't get back. The QR engagement lets the lower head slide axially up the shaft to working position; a quarter-turn engages the threads for the actual press stroke.

Spec

• Size range: 1 inch through 1.5 inch cup ID
• Mechanism: thrust bearing at top; quick-release at bottom
• Build: professional-shop-bench-grade construction

Compatibility

The 1680/4 fits any headset within the 1.0 inch through 1.5 inch cup-ID range. That covers:

• 1 inch threaded and threadless headsets (most legacy designs)
• 1-1/8 inch threadless headsets (current road and gravel standard)
• 1-1/4 inch headsets (some current road and MTB designs)
• 1-1/4 inch upper / 1-1/2 inch lower tapered head tubes (the dominant current MTB and gravel design)

The press works on press-fit headsets directly. Threaded headsets in the same size range also get pressed by the 1680/4 because the cups themselves are press-fit; the threaded interface is on the steerer side, not the head-tube side.

Built in Zreče, Slovenia

Unior has been forging hand tools in Zreče since 1919, and is the official technical partner of multiple World Tour and downhill teams. The 1680/4 has the construction tolerances that matter on a press: the heads sit square to the shaft within tight working spec, and the thrust bearing decouples handle torque from cup rotation. The press lives on a shop bench for the working life of the shop.

Pro tip from our mechanics

Grease the bearing seats lightly before pressing the cups in. A thin film of anti-seize on the head-tube bore makes the cup go in with even effort instead of binding partway through; it also makes the cup come out cleanly years later when service eventually needs to happen. Grease the cup's outer face, not the bearing race; the race needs to stay clean. The full headset workflow, including the install sequence, lives at Bearing and headset service: a workshop guide →
