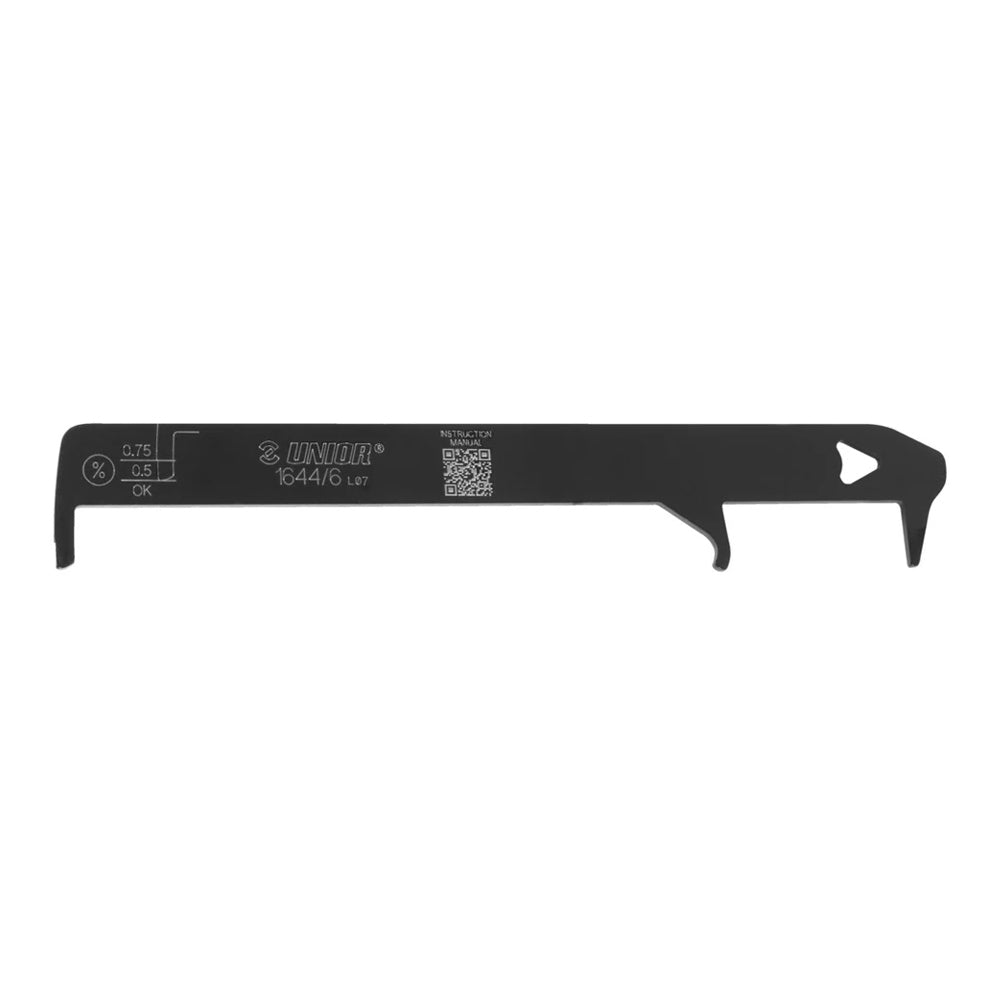

Chain Wear Indicator

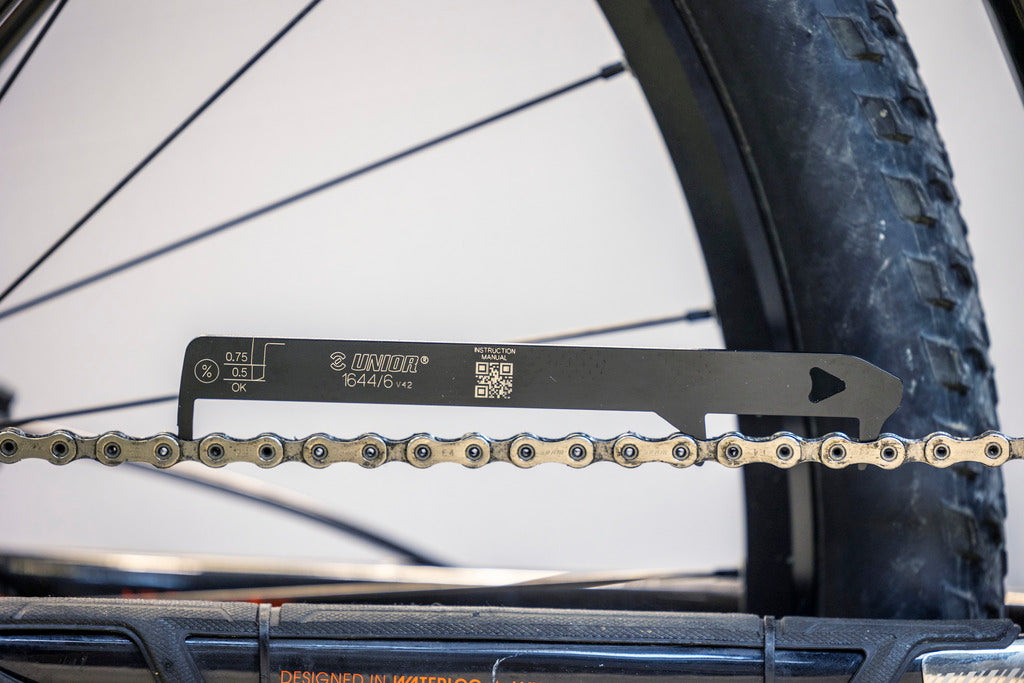

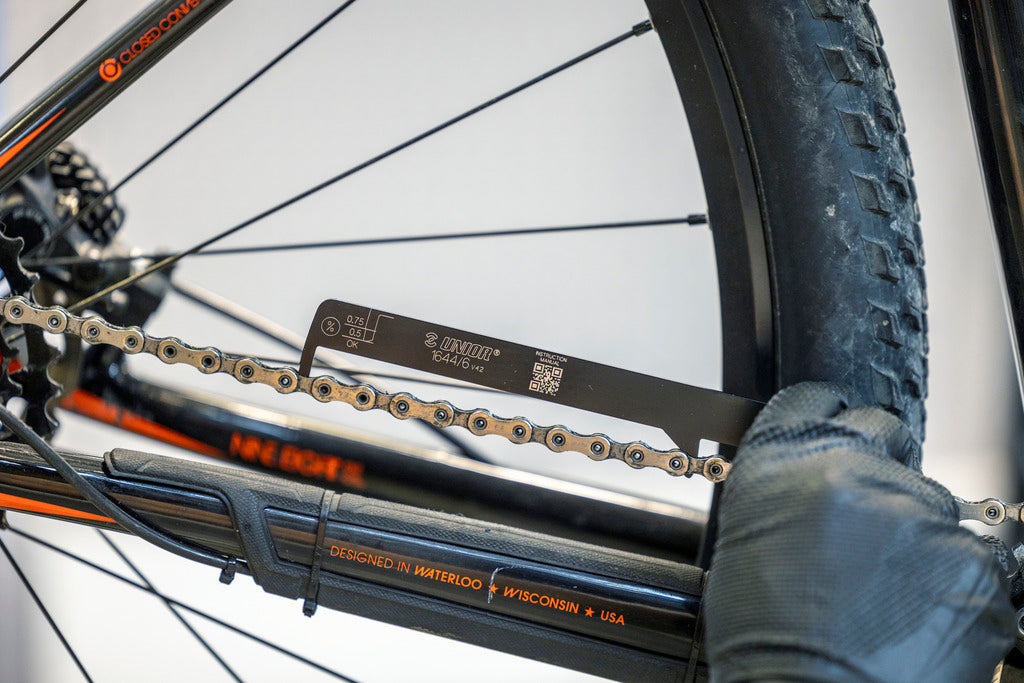

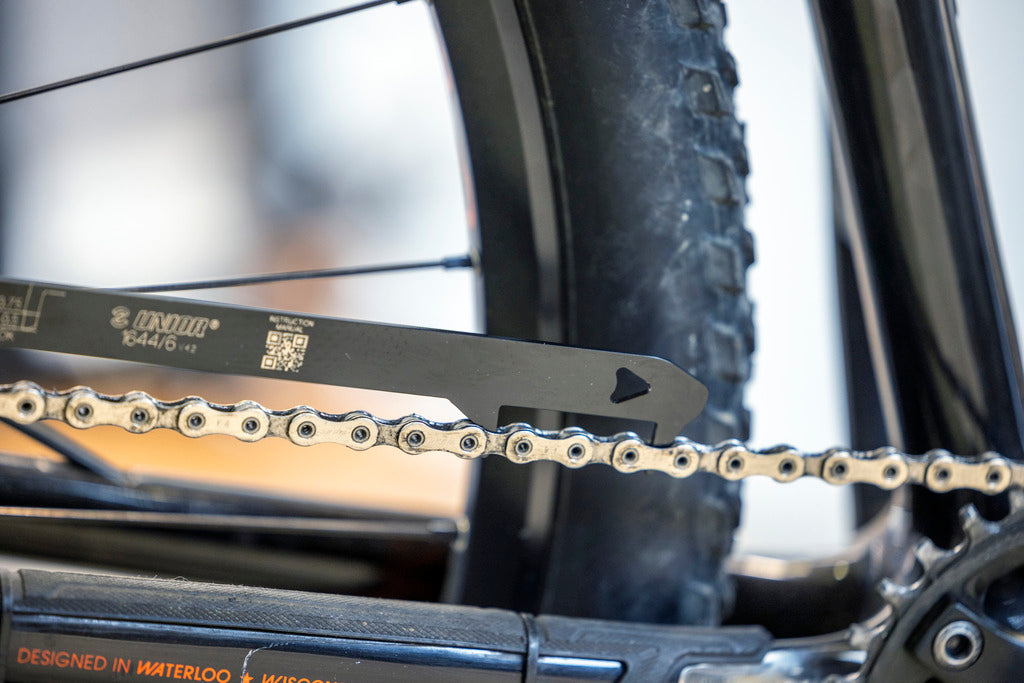

A chain doesn't tell you it's worn. It elongates a few thousandths of a millimeter at every pin, and by the time the cassette starts skipping under load the damage is already done. The Chain Wear Indicator 1644/6 is the small tool that catches the moment before that happens. Drop it into the chain, push down gently, and the gauge gives you a yes-or-no answer in about three seconds.

The reason this one reads the chain honestly is the three-point geometry. Most wear gauges register pin-to-pin distance and call it elongation, but a chain with worn-out rollers and tight pins reads false-positive on a two-point tool: the rollers sit loose against the gauge, and the gauge drops in. The 1644/6 uses a three-point design that isolates pin elongation from roller wear, so the reading reflects the actual chain-stretch number rather than the sloppier proxy.

How to read it

Two thresholds are stamped on the tool, one at each end:

• 0.5% side for 11-, 12-, and 13-speed chains. Modern narrow-spaced chains start damaging the cassette before they hit 0.75%, so the replacement trigger moves earlier.
• 0.75% side for 6- through 10-speed chains. The wider cog spacing gives the chain a little more room before the deformation cascade starts.

If the 0.5% side drops in on an 11-speed chain, the chain goes. If the 0.75% side drops in on a 9-speed chain, same call. If neither drops in, the chain is still inside its service window. A QR code on the body links to a usage video for the moments when the answer feels closer than that.

Compatibility

Every 6- to 13-speed derailleur chain in current production, including SRAM AXS flat-top chains. The three-point design is geometry-agnostic; what differs across speeds is the threshold to read against, not the way the tool sits in the chain.

Specs

• 6-13 speed derailleur chains; SRAM flat-top
• Precision laser-cut steel
• 178 × 45 × 29.4 mm
• 20 g
• Article number: 1644/6
• QR code with video usage instructions printed on the body

Built in Zreče, Slovenia

Unior has been forging hand tools in Zreče since 1919, and sponsors professional road and mountain-bike race teams. The dual-threshold pair stamped on the 1644/6 matches what current chain manufacturers publish for narrow-spaced and legacy drivetrains; the three-point geometry is the design call that makes the tool useful at both ends. It's a small piece of laser-cut steel that does one job, and it does it more accurately than the gauge in the bottom of your toolbox.

Pro tip from our mechanics

The 0.5% vs. 0.75% split is where most home mechanics get the call wrong; the older single-threshold gauges are calibrated to swap a chain later than a modern 11- or 12-speed drivetrain wants. The 1644/6 reads the right threshold for the right chain, but knowing which threshold applies to which bike is the part that's not on the tool. Our chain-replacement guide covers when each threshold applies, what's happening to the cassette teeth in the gap between them, and how to break and reinstall cleanly once the call is made: When and how to replace your chain →

FAQ

At what wear point should a SRAM 12-speed chain be replaced? Like all 11-, 12-, and 13-speed chains, SRAM 12-speed chains (flat-top included) are read against the 1644/6's 0.5% end; the moment that side drops into the chain, the chain is due. The 0.75% end is for 6- to 10-speed drivetrains only.

Why does the 1644/6 carry both a 0.5% and a 0.75% threshold? Each end matches a drivetrain generation. Narrow-spaced 11- to 13-speed chains begin damaging the cassette before 0.75%, so their replacement trigger moves up to 0.5%, while 6- to 10-speed chains get enough room from their wider cog spacing to run to 0.75%.

What does a three-point chain checker measure that a two-point gauge misses? The difference is what the gauge touches. Resting on two points, a checker can be fooled by loose rollers into condemning a chain whose pins are still tight; the third contact point takes the rollers out of the reading, so what's left is genuine elongation at the pins.
