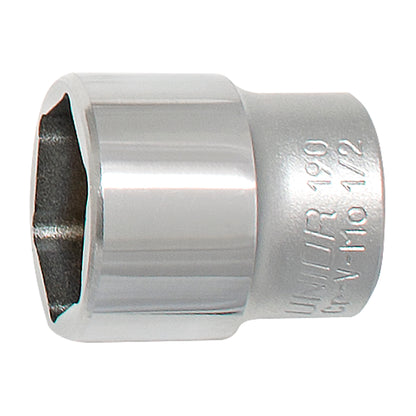

Flat Socket for Suspension Forks

Modern suspension-fork top caps are machined from soft aluminum with shallow flats, and a standard six-point chamfered socket rounds them on the first hard turn. Suspension techs spent years grinding the chamfer off regular sockets to get past this; the 1783/1 6P is the socket they would have ordered if they could have bought it instead of making it.

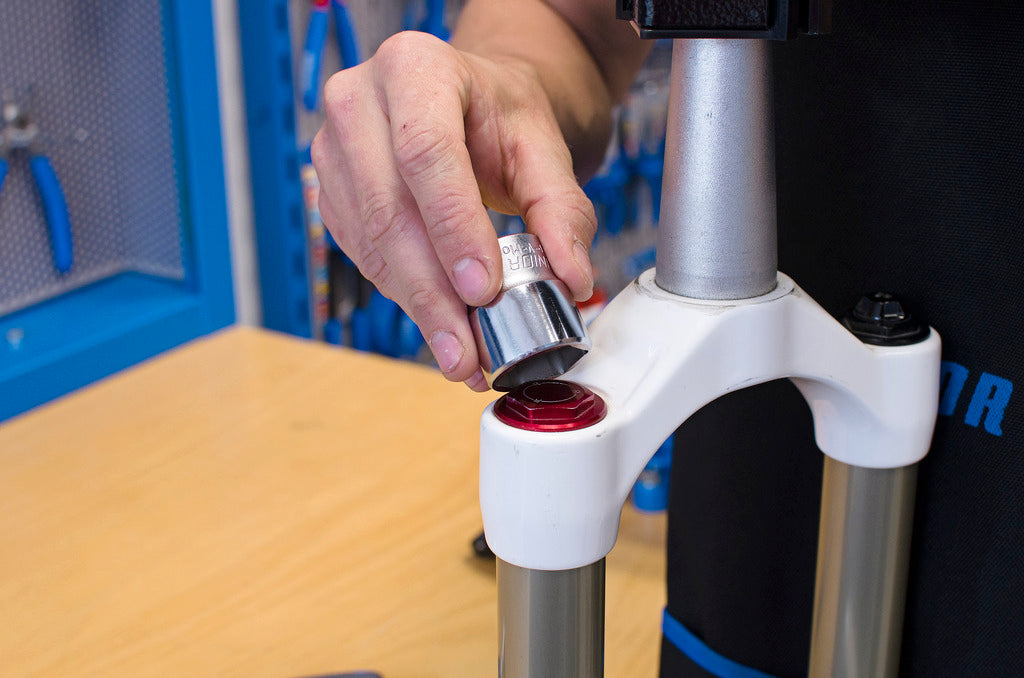

The flat face of the socket sits squarely against the full height of the top-cap flats. There is no taper at the leading edge, so the socket bites the entire flat instead of pinching the top of it. On a fork that has seen one or two services already, the difference is the moment between "the cap turns" and "the cap rounds and you are now ordering a replacement cap from a service center."

What this socket fits

Modern suspension forks across the major manufacturers use one of a small number of top-cap flat sizes; the 1783/1 6P ships in multiple sizes to match. Check your fork manufacturer's service documentation to confirm the size for your specific fork model before ordering.

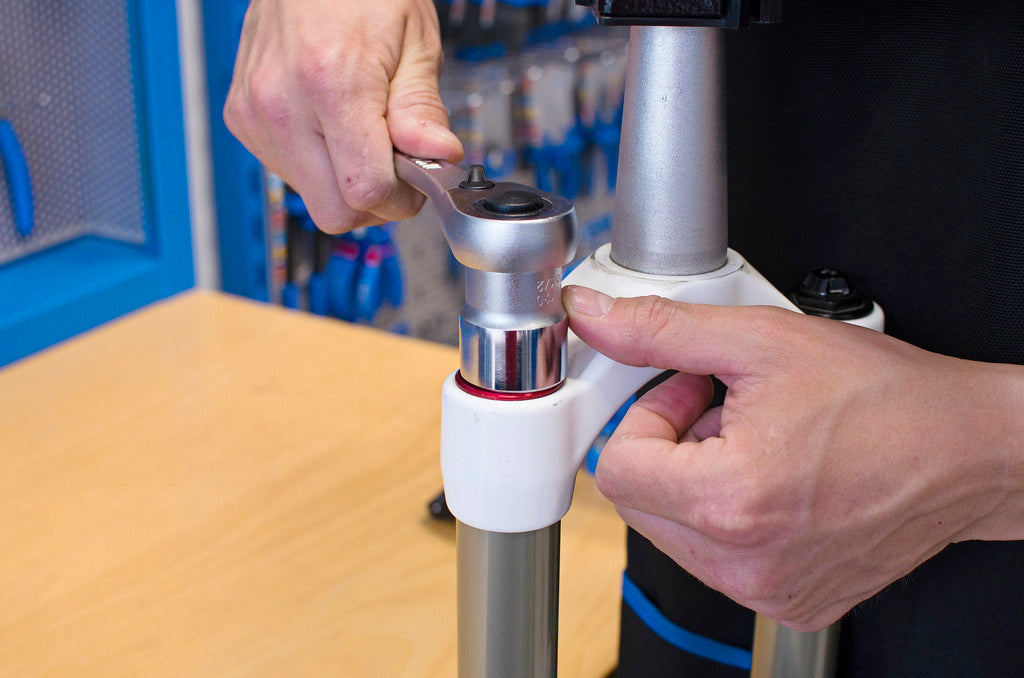

The socket runs on a standard 1/2" drive. Pair it with our Pro Socket Handle for the compact-leverage version, or any 1/2" drive ratchet you already keep on the bench.

Specs

• Drive size: 1/2"
• Profile: 6-point flat (no chamfer)
• Material: premium flex chrome vanadium steel
• Finish: trivalent chrome plated to ISO 1456:2009
• Article: 1783/1 6P
• Multiple top-cap sizes available

Built in Zreče, Slovenia

Unior has been forging hand tools in Zreče since 1919, and sponsors professional road and mountain-bike race teams. These sockets are machined to skip the chamfer that the soft top-cap face cannot survive; a manufacturing decision aimed at a specific failure mode the cycling catalog has lived with for years.

Pro tip from our mechanics

The fork top cap is the first tool engagement of a lower-leg service, and the moment that decides whether the service ends with a clean reinstall or a parts-search for a damaged cap. Start with the right socket and the rest of the workflow follows.

How to service your suspension fork's lower legs →

FAQ

Which size do I need for my fork? Measure the wrench flats on your fork's top cap, or look the size up in your fork manufacturer's service documentation — top-cap sizes vary by brand, model and year, so there is no universal chart. The 1783/1 6P comes in 23, 24, 26, 27, 28, 30 and 32 mm, which covers the common sizes across the major suspension manufacturers. If a caliper across the cap's flats reads one of those numbers, that is your socket.

Why not just use a normal 6-point socket? A standard socket has a chamfered lead-in that only grips the top portion of a fastener's flats. That is fine on a steel hex bolt, but a suspension top cap is soft aluminum with very shallow flats — often only a few millimetres tall — so the chamfer leaves almost nothing engaged and the cap rounds off. The 1783/1 6P has a flat face with no chamfer, so the full height of the flat is engaged before you apply torque.

What drive and handle does it take? A standard 1/2" square drive. It works with any 1/2" ratchet or torque wrench you already own; for a compact bench setup it pairs with our Pro Socket Handle. Top caps take low torque — check your fork's service manual for the exact figure and use a torque wrench on reassembly rather than guessing.

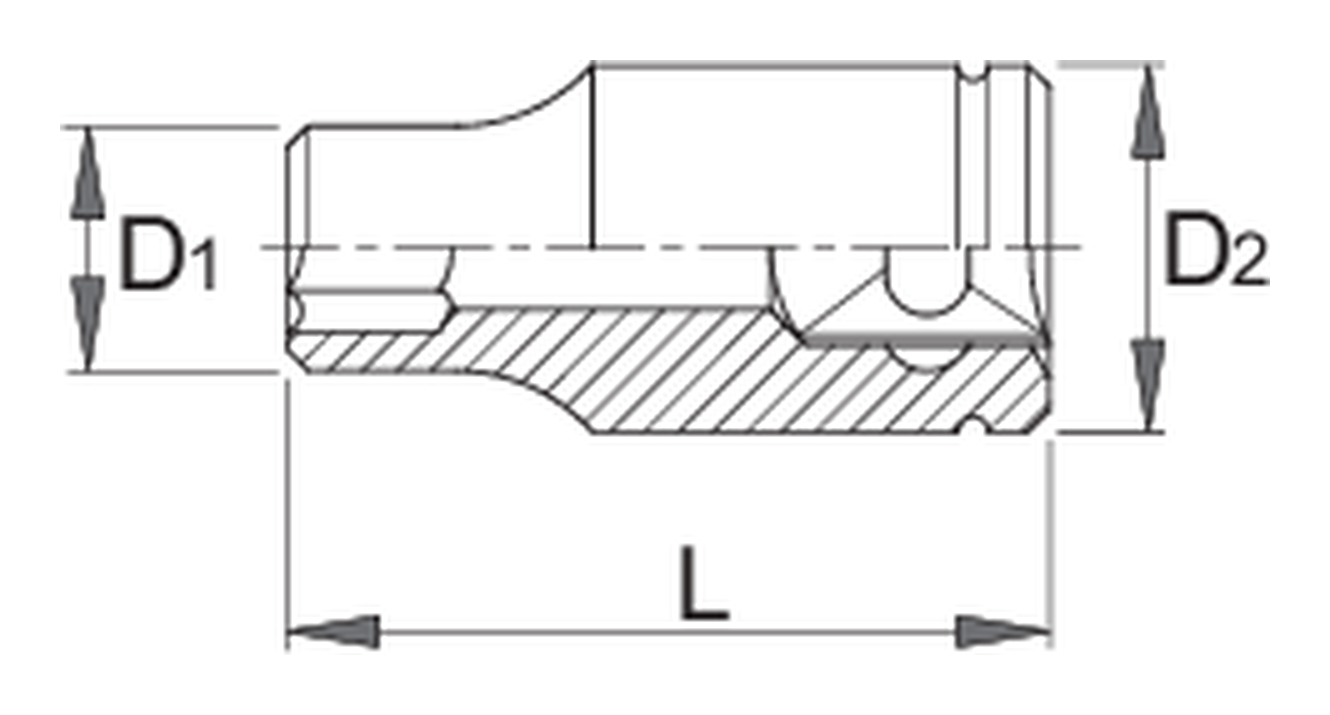

What is the socket made of? Drop-forged premium chrome vanadium steel, entirely hardened and tempered, with a polished trivalent chrome plating to ISO 1456:2009. Bare-tool weights run from 128 g for the 23 mm size to 233 g for the 32 mm — the full per-size table is in the size guide on this page.
