Aluminum Bottom Bracket Socket Shimano BB9000

The Shimano BB9000 is the bottom bracket the Dura-Ace 9000 / 9100 / 9200 generations of road cranksets thread into. It's a 24 mm-spindle HT2 cup with notch geometry that splits the difference between the standard 16-notch outer interface and Dura-Ace's slightly different splined depth. A workshop socket cut to fit a Hollowtech II generic cup will skip on the BB9000 under hard install torque, and a single skip is enough to round the cup.

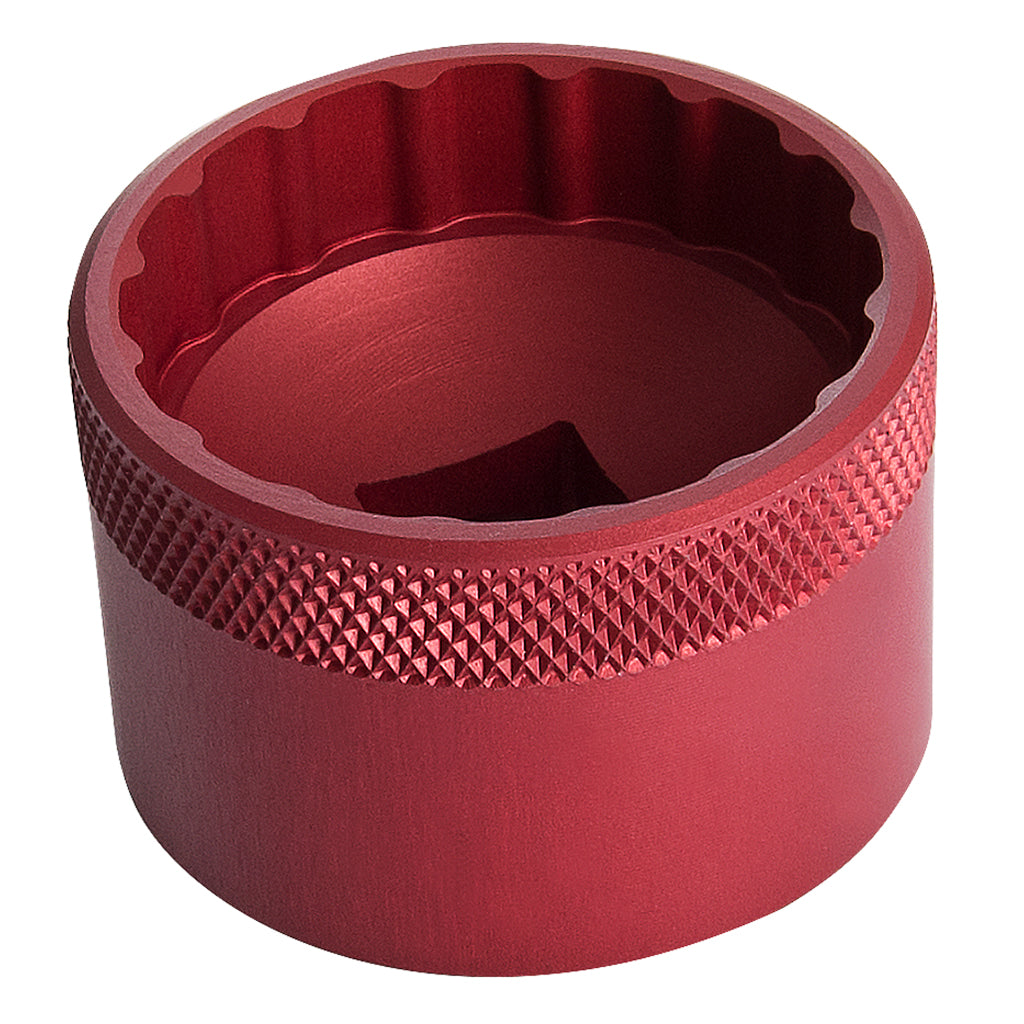

The 1671 Aluminum BB Socket cut for BB9000 is sized to the cup's actual outer notch profile, not the generic HT2 pattern. The splines mesh fully when seated, which is the engagement geometry that matters: 16 notches all carrying equal load across the cup face means the install torque is shared across the engagement, not concentrated on three or four notches where a poor-fit tool bites.

Why aluminum, not steel

The aluminum BB socket line is the workshop's answer to a problem that's specific to premium road cranks: anodized aluminum cups on Dura-Ace, Ultegra, and modern carbon-spindle road BBs are soft enough that a heavy steel socket leaves visible scarring on the outer notch faces, even when the splines fit. The 6000-series aluminum body on the 1671 is the same hardness order as the cup itself, so the socket conforms to the notch without leaving the metallic scarring that customers see on a returned wheel.

The trade-off is a softer tool. These aren't lifetime sockets for a pro shop bench; they're precision sockets where socket-OD-to-frame clearance and finish-on-cup matter more than absolute service life. The change to aluminum sockets was a deliberate product-line addition, not a replacement for Unior's steel socket family.

Compatibility

• Shimano BB9000 / BB9100 / BB9200 (Dura-Ace generations, 24 mm spindle)
• Other current 24 mm HT2 cups that share the BB9000 notch geometry
• Not for 30 mm-spindle cups; use the BSA30, BB30, or T47 variants in the same socket line

Specs

• Drive: 1/2" square drive (use with a torque wrench, ratchet, or fixed handle such as the Pro Socket Handle)
• Material: CNC-machined aluminum, red-anodized
• Notch fit: sized specifically to the BB9000 cup outer profile
• Includes: the socket itself; pair with the Bottom Bracket Socket Retaining Tool when working on cups with low-profile fittings

Built in Zreče

Unior has been forging hand tools in Zreče since 1919, and is the official technical partner of multiple World Tour and downhill teams. The BB9000 socket is the precision-fit variant for a cup that lives on a workshop's most expensive cranksets; the aluminum body trades absolute service life for the no-marring finish that matters when the BB lives on a customer's Dura-Ace build, not on the shop's training wheel.

Pro tip from our mechanics

The 35–50 Nm Shimano publishes for HT2 cup install isn't optional. Hand-tight plus ”feels firm“ leaves enough rotational play under pedaling load to walk the drive-side cup outward over a few hundred miles, and the creak from a backed-out cup mimics a worn-out bearing well enough that mechanics chase it down the wrong diagnostic path. Use a torque wrench. The 1/2" square drive on this socket exists because the torque value matters.

For the full BB removal-and-reinstall procedure with thread direction by side and clean-or-replace decision tree: Replace or clean your bottom bracket →.
