Bottom Bracket Socket Retaining Tool

The problem this tool solves is small and specific: an aluminum BB socket on a low-profile cup loses engagement under torque. The cup's outer notches are shallow, the socket's splines barely fully seated, and the first hard turn of the wrench lifts the socket out of the engagement and rounds the notches. The fix isn't a different socket; it's holding the socket fully home while torque is applied.

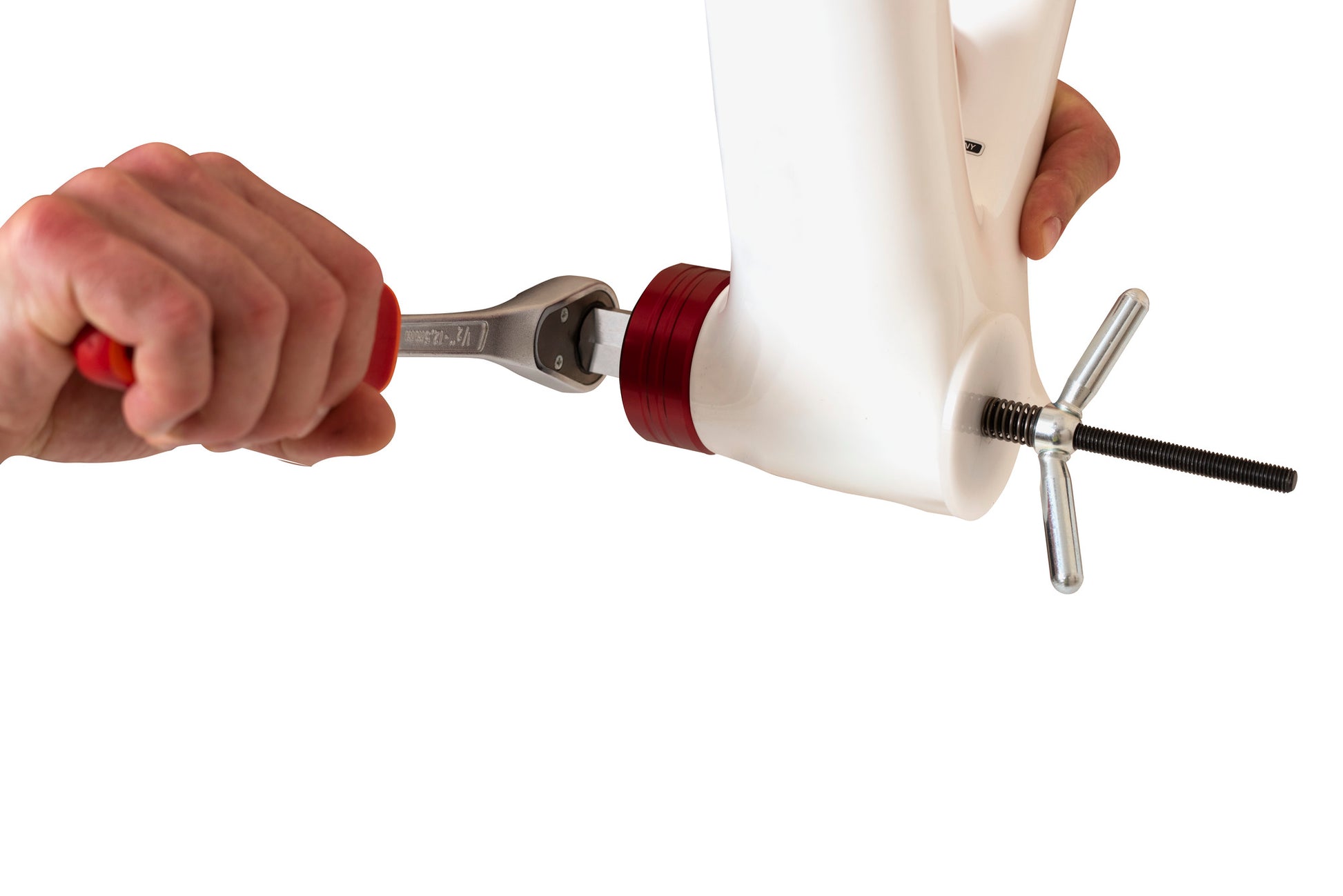

The Bottom Bracket Socket Retaining Tool does exactly that. A 1/2" adapter slides into the socket's drive square; a threaded rod runs through the adapter and centers in the BB spindle bore. A spring tension system on the rod pulls the socket axially toward the cup, holding the splines fully home in the notches throughout the install or removal turn. The socket can't lift; the engagement stays clean; the cup's notches stay sharp.

When this tool becomes a permanent bench fixture

Most full-depth HT2 cups don't need this tool; the socket seats fully and stays seated under everyday install torque. The low-profile case is the failure mode: cups whose outer notch depth is shallow enough that the socket's spline tips ride proud of the engagement face, and the first hard turn of the wrench lifts the socket out of the cup. When a shop sees the rocking-socket problem twice in a month, it's run into the case often enough to put the retaining tool on the bench permanently. It pairs with every socket in the 1671 aluminum family.

Compatibility

• All 1/2" drive aluminum BB sockets in the 1671 family
• Official fitment: all aluminum 1/2" bottom bracket sockets
• BB cups with low-profile outer engagement (where the socket's splines sit at or near the cup's notch depth)

Specs

• Drive adapter: robust metal 1/2" square drive that engages the BB socket
• Threaded rod with spring tension system: generates consistent retention force, keeping the socket fully engaged with the cup's fitting throughout install or removal

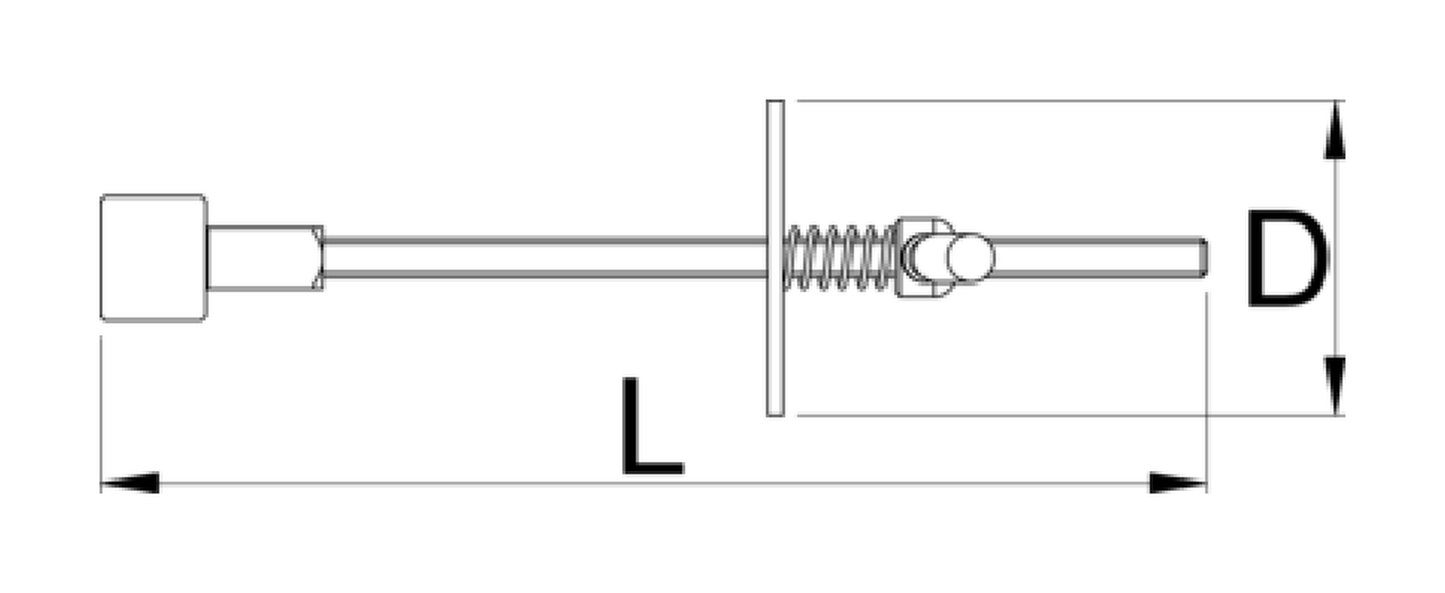

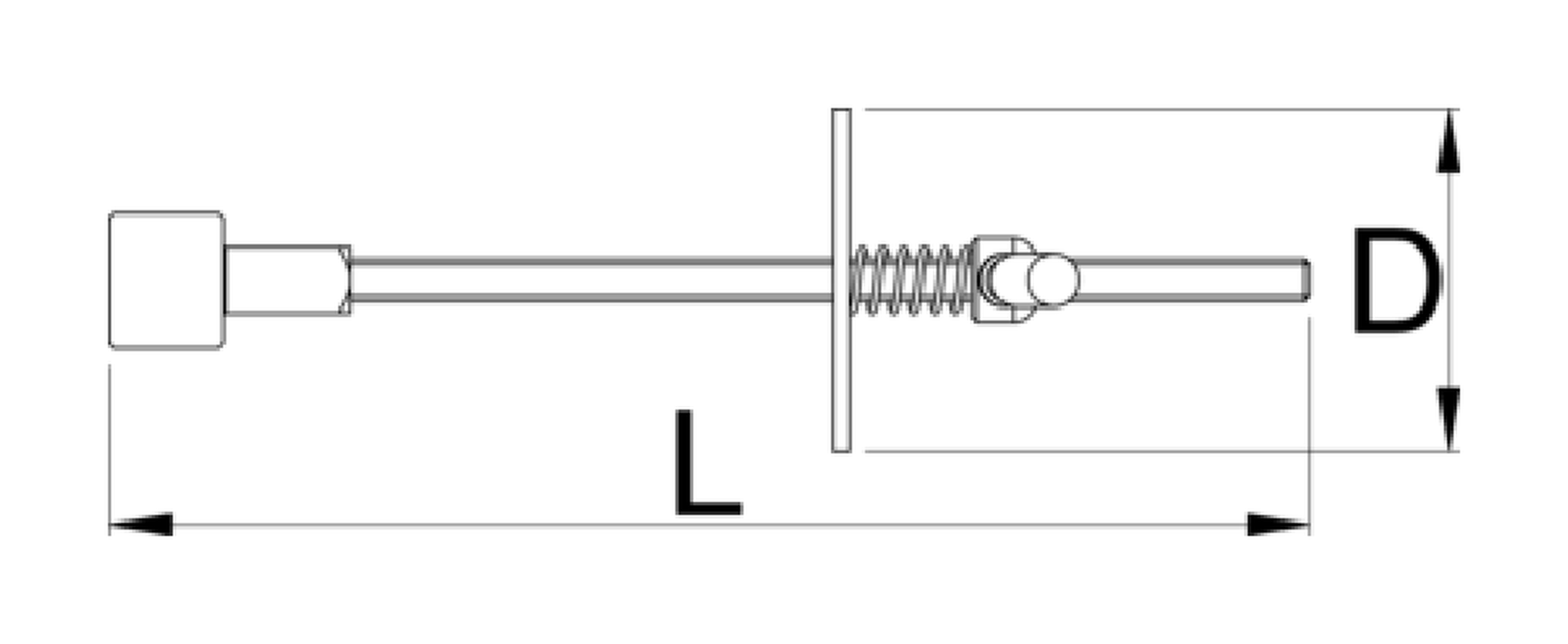

• Material: Unior does not publish a steel grade for 1671.RET. Official dimensions: length 231.5 mm, disc diameter 65 mm, weight 203 g.
• Includes: article 1671.RET (code 629612): the 1/2" adapter, threaded rod, and spring tension assembly as a single tool

Built in Zreče

Unior has been forging hand tools in Zreče since 1919, and sponsors professional road and mountain-bike race teams. The socket retaining tool is the small, specialized solution to a problem that doesn't have a name in most workshops; it just shows up as “this cup keeps marring even though I'm using the right socket.” The retaining tool is what makes the right socket actually fit.

Pro tip from our mechanics

A creak from a recently-installed BB can be the cup; it can also be a mark on the socket from a previous install where the socket walked. Inspect the working face of the BB socket before each use, especially on premium cups. If the socket's spline edges are slightly rounded or show metallic transfer from a previous cup, replace the socket; a worn socket against a fresh cup is the recipe for the creak to come back next month.

For the BB-area noise diagnostic order before assuming the BB is the source: Creaky bottom bracket? Check these first →.

FAQ

What does the 1671.RET do? It holds an aluminum 1/2 inch bottom-bracket socket on the cup so the socket cannot walk off low-profile fittings under torque. Unior's catalogue describes a metal 1/2 inch adapter, a threaded rod, and a spring that keep the socket fully engaged with the cup.

Which sockets does it fit? Official fitment is all aluminum 1/2 inch bottom-bracket sockets. On this store that is the 1671 family, including the 16-notch socket. It is not a socket itself and it is not listed for steel sockets.

When do I need it instead of just the socket? When the cup's outer fittings are shallow enough that the socket lifts as soon as you turn the wrench. Full-depth cups often hold the socket on their own; low-profile cups are the case Unior wrote this tool for.

How big is it, and what is in the box? Article 1671.RET, code 629612. Official sheet: length 231.5 mm, disc diameter 65 mm, weight 203 g (tolerances apply). It ships as one assembly: the 1/2 inch adapter, threaded rod, and spring. Unior lists no spare parts for it.
