Aluminum Bottom Bracket Socket Shimano BBR60

The Shimano BBR60 is the bottom bracket the workshop sees most often. It's the current-generation Hollowtech II road external cup that ships on a wide swath of Shimano-equipped road bikes, which means it's the cup that lands on the bench every week, not every quarter. A precision socket for the BBR60 is a daily tool, not a specialty one.

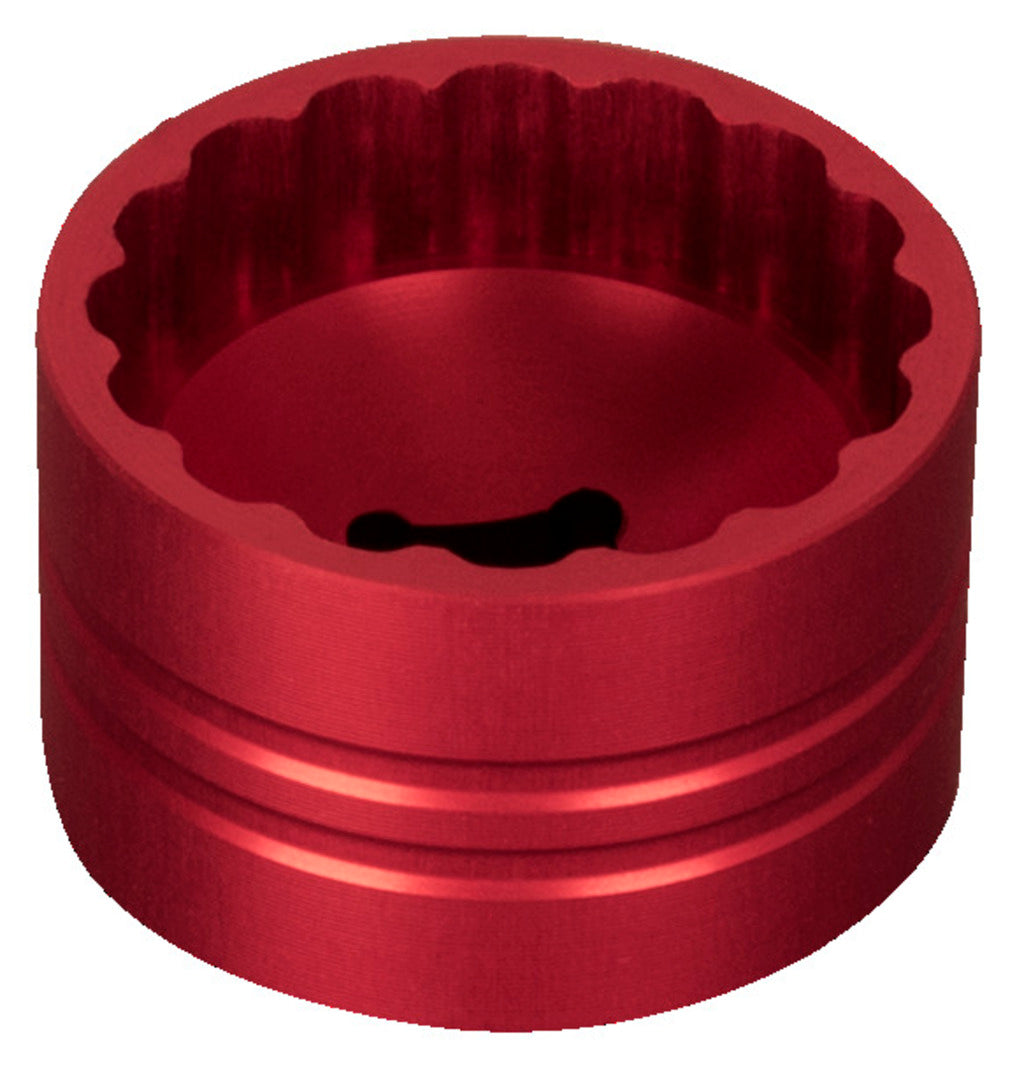

The 1671 Aluminum BB Socket for BBR60 fits the cup's outer notch geometry without the rocking play that mass-market sockets allow. The aluminum body matches the cup's hardness order, so installation and removal happen without the metallic scarring that a steel socket leaves on the anodized cup face. Visible scarring on a customer's BBR60 looks like shop damage even when the install was clean; the no-mark finish is the deliverable, not a side effect.

Where it fits in the catalog

This socket is the BBR60-specific cut in the 1671 aluminum line. The line's other cuts cover BB9000 (Dura-Ace), BSA30 (threaded BB30), T47, FSA MegaEvo, E13, Hope, and the generic 16-notch. A shop running on Shimano-equipped bikes most days needs the BBR60 socket on the bench permanently; the others rotate in as the bikes come through.

Compatibility

• Shimano BBR60 (Ultegra and 105 generations)
• Other current Shimano-pattern HT2 cups with the BBR60 notch profile (verify cup OD before applying force)
• Not for SRAM DUB or 30 mm-spindle cups; those need separate sockets in the line

Specs

• Drive: 1/2" square drive (use with a torque wrench, ratchet, or fixed handle such as the Pro Socket Handle)
• Material: CNC-machined aluminum, red-anodized
• Notch fit: BBR60 outer profile, knurled grip for hand setting
• Includes: the socket itself; pair with the Bottom Bracket Socket Retaining Tool when servicing cups with low-profile engagement

Built in Zreče

Unior has been forging hand tools in Zreče since 1919, and is the official technical partner of multiple World Tour and downhill teams. The BBR60 socket sees the most service hours of any socket in the 1671 family for a shop that works on mid-tier road bikes; CNC-machined aluminum is the construction call that keeps the engagement tight after the first few hundred installs, where a steel socket's notch profile rounds enough to start leaving marks on the cup.

Pro tip from our mechanics

When a BBR60 comes in for service, replace the seal grease before pressing the cup back in, even if the bearings still feel smooth. In our experience, the grease at the inboard seal dries out faster than the bearing itself wears, and a partially dry seal is what lets road grit into the bearing race in the first place. New grease at the seal extends bearing life noticeably, at the cost of a few minutes per service.

For everyday-service torque values and seal-grease intervals on Hollowtech II BBs: Replace or clean your bottom bracket →.
