Pro Pedal Wrench

The long-leverage shop tool for stuck pedals

When a pedal will not come off, the answer is almost always leverage. The Pro Pedal Wrench is 350 mm long with two offset 15 mm openings; that combination lets the wrench reach the pedal's wrench-flats at any clock position and pull against them with the lever-arm length pro mechanics need. A short wrench rounds the flats before it frees the pedal; a long one breaks the pedal loose without damaging the engagement surfaces.

The two openings are offset so that whichever way the flats face, one end lines up squarely. The wrench drops in flush instead of catching one corner of the flats at an angle. That single design choice is the difference between a stuck pedal that comes off in three minutes and one ground into uselessness over twenty.

Built for the workshop's worst pedals

This is the tool we reach for on the bikes that come in with a “pedals have been on there for ten years” note. The extra-long 350 mm handle is 80 mm longer than Unior's compact 1613/2DP (270 mm). Two details earn this tool its place on the workshop bench:

• A 15 mm box wrench in the body (official S3 = 15 mm). The wrench is drop-forged, entirely hardened and tempered, not laser-cut.
• A bottle opener is included, as on the official 1613/2BI-US datasheet. Unior is a tool company; the mechanic at the end of a hard day appreciates the second function.

Compatibility

The 1613/2BI fits any pedal with 15 mm wrench flats machined into the spindle. That covers most road, commuter, and MTB platform pedals. For pedals with hex-only engagement (6 mm or 8 mm at the inboard end of the spindle), see the Speed Pedal Wrench 6mm and Speed Pedal Wrench 8mm variants.

Specs

• Length: 350 mm

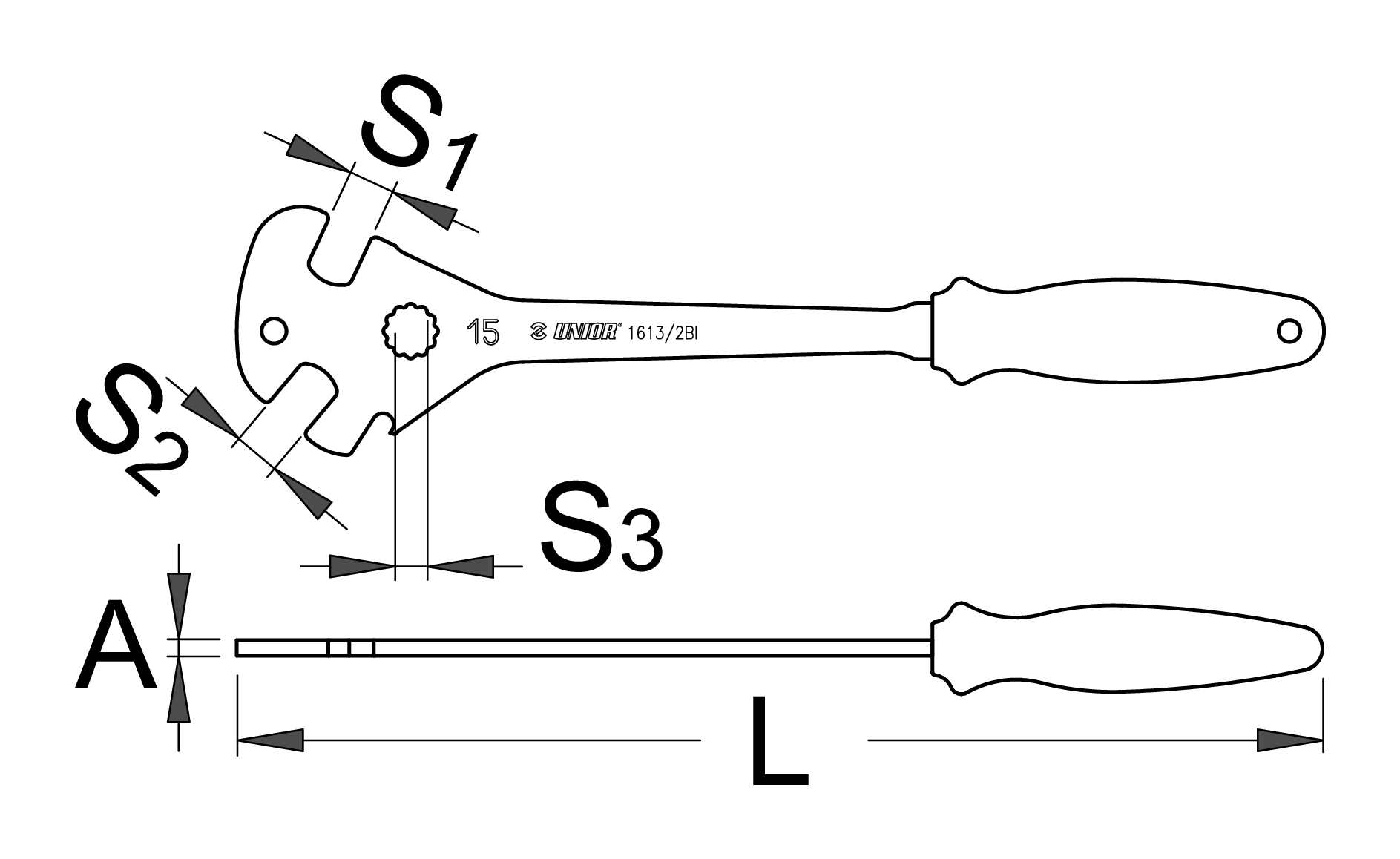

• Opening size: 15 mm × 2 offset openings (S1, S2) plus a 15 mm box (S3)
• Built-in: 15 mm box wrench, bottle opener
• Material: Premium flex plus carbon steel, drop-forged, entirely hardened and tempered
• Finish: Trivalent chrome plated according to ISO 1456:2009; thickness 5 mm; weight 381 g; article 1613/2BI-US, SKU 624961
• SKU: 1613/2BI

Built in Zreče, Slovenia

Unior has been forging hand tools in Zreče since 1919, and sponsors professional road and mountain-bike race teams. As Bikerumor put it during the company's centenary year:

“Unior is one of the rare companies to make their own tools in-house and has been doing so for a hundred years now in the same place in Slovenia.”

That continuity matters most on the workshop-grade tools, where the steel grade and heat-treatment cycle are the difference between a tool that survives a decade of shop use and one that bends in its first stuck-pedal attempt. The 1613/2BI is one of those tools.

Pro tip from our mechanics

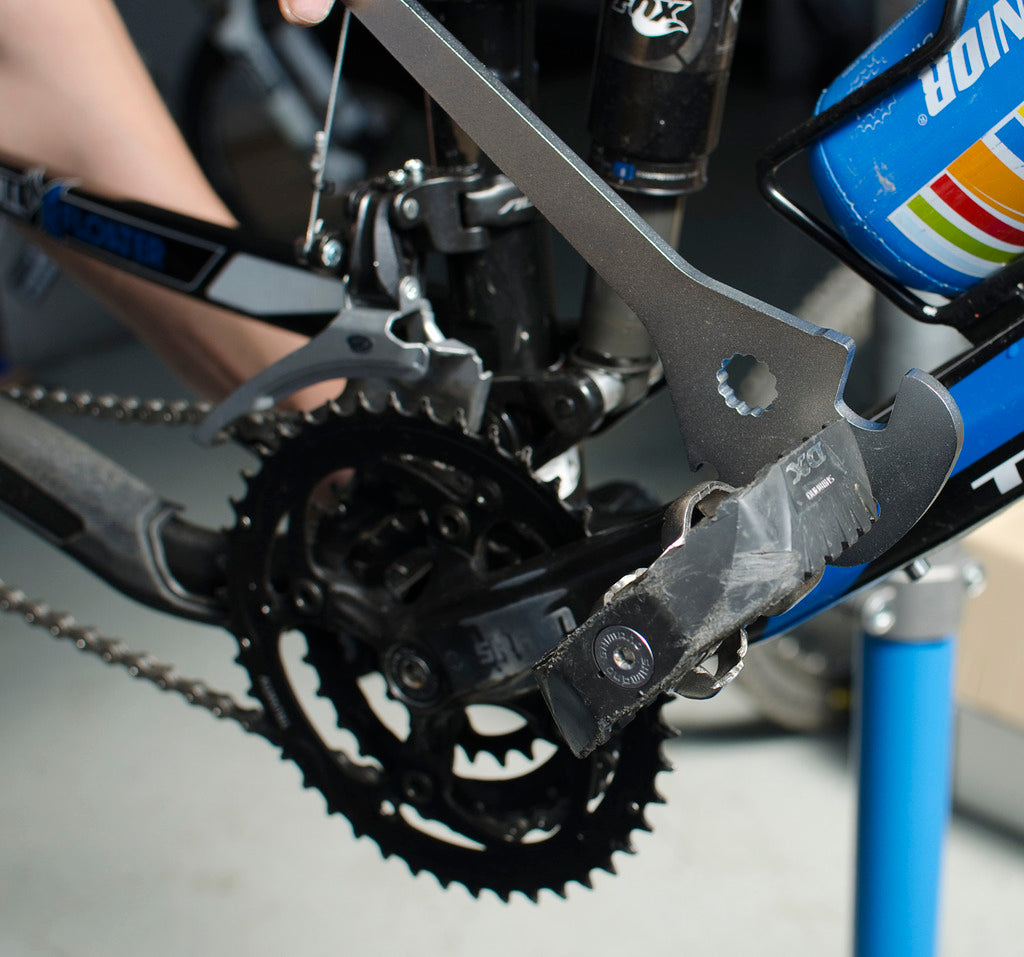

The 1613/2BI's leverage is enough to free almost any pedal at install spec, but technique matters too. Brace the crank against the chainstay before you load the wrench so the wrench arm and your body weight do the work instead of the crank arm flexing under load. Our pedal-install guide walks through the sequence we use in the shop, including the moment when stuck means switch to thread repair rather than more force: How to install and remove bike pedals →

FAQ

What openings does the 1613/2BI actually have? Three 15 mm openings. Official S1 and S2 are the two open ends, set at offset angles so one jaw can sit square on the pedal flats regardless of axle clock position. Official S3 is a 15 mm box in the body. Article 1613/2BI-US, SKU 624961.

How is the 1613/2BI different from the 1613/2DP and the 1613/2CF crowfoot? The 1613/2BI is the 350 mm drop-forged Pro shop wrench (5 mm thick, 381 g) with two offset 15 mm openings plus the 15 mm box. The 1613/2DP is Unior's compact 270 mm laser-cut wrench with a single 15 mm opening (201 g). The 1613/2CF is a 15 mm crowfoot (40 mm long, 57 g) for a 1/2 inch torque wrench, not a long-handle shop wrench.

Will the 1613/2BI turn a hex-only pedal spindle? No. This article is a 15 mm pedal wrench. Unior's service manual says pedals take a 15 mm wrench or an 8 mm hex; hex-only spindles need a hex driver (Unior's 1613S Speed Pedal Wrenches), not this tool.

What is the 1613/2BI made of, and how big is it? Premium flex plus carbon steel, drop-forged, entirely hardened and tempered, trivalent chrome plated to ISO 1456:2009, with an ergonomic double-component handle. Official dimensions: length 350 mm, thickness 5 mm, weight 381 g. A bottle opener is included. Covered by Unior's lifetime warranty.
