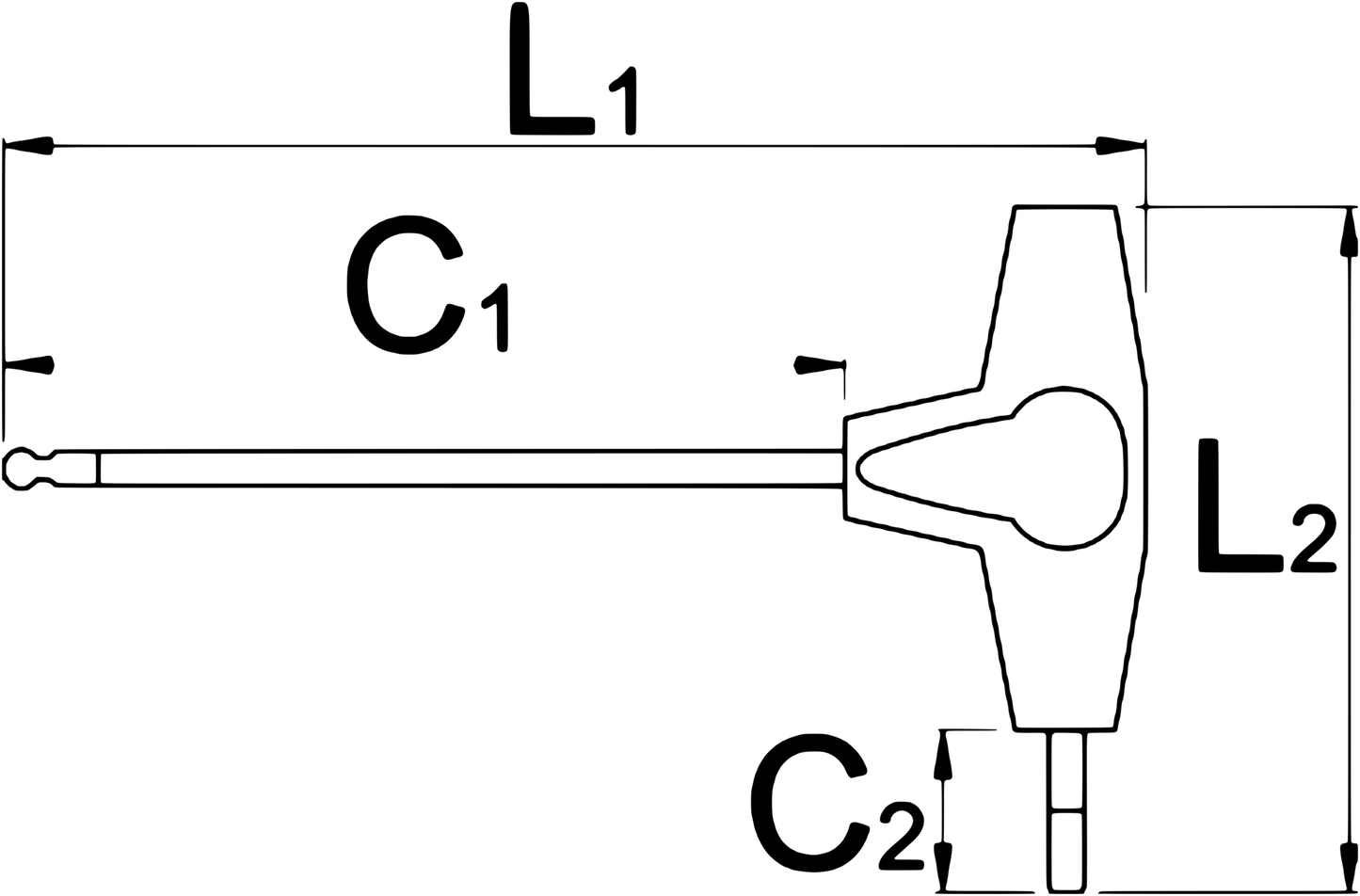

T-Handle Ball End Hex

The T-handle hex with a ball-tip end. The format that gives you the spin-with-fingers speed of a T-handle plus the angled-access geometry of a ball-end hex, in a single tool sized to live on a workbench. Available across the metric hex sizes the 193HXS line covers.

The ball-tip changes what a T-handle can do. Where a straight-tip T-handle needs the bolt's axis perpendicular to the cross-bar to engage, a ball-tip T-handle engages the bolt at up to about 25 degrees off-axis. That's the geometry that lets a single T-handle reach into stem face plates behind the bar bend, into the bolts of a rear bottle cage where a rack shrouds the head, into chainring bolts between the frame and the crank arm, all without switching to an L-key.

The chrome-vanadium shank is hardened and tempered. The ball geometry is machined to a precise spherical radius and finished with the same black-oxide tip treatment as the straight-tip 193HX line. The cross-bar is glass-fibre-reinforced polypropylene, balanced so the unused angle of the T doesn't fight your grip on the shank.

Compatibility

The 193HXS line is sized to the fasteners that most often need angled access on a bike:

• 4 mm: stem face-plate bolts behind the bar bend; brake-lever clamps in tight cockpit setups
• 5 mm: stem steerer-clamp bolts when the headset cover sits proud; saddle-rail bolts in some clamp designs
• 6 mm: disc-brake caliper-mount bolts shrouded by frame stays; some chainring bolts in tight crank clearances

Below 4 mm the ball-tip geometry loses leverage and the small-size cluster works better in a straight-tip Y-handle or L-key format. Above 6 mm the working-torque range usually exceeds what a ball-end can transmit without rounding the recess, which is why the line concentrates on the 4-to-6 mm angled-access sizes.

Specs

• Single-size T-handle ball-tip hex wrench (size selected at order)
• Chrome-vanadium steel shank, hardened and tempered
• Black-oxide tip treatment for corrosion resistance and recess fit
• Trivalent chrome plating to ISO 1456:2009 on the non-tip shank surfaces
• Glass-fibre-reinforced polypropylene T-handle
• Ball geometry engages the bolt at up to about 25 degrees off-axis
• Hex keys manufactured to the ISO 2936 dimensional standard for metric hex keys
• Manufactured in Slovenia

Built in Zreče, Slovenia

Unior has been forging hand tools in Zreče since 1919, and is the official technical partner of multiple World Tour and downhill teams. The ball-tip T-handle is the angled-access counterpart to the straight-tip 193HX line; the two formats share construction and tolerance specs, with the ball geometry's spherical radius held to the same precision as the straight-tip's recess fit.

Pro tip from our mechanics

Ball-tip is the right tool for finding a bolt at an angle and breaking it loose. It's the wrong tool for the final torque pass. The ball's contact patch is small, and concentrated torque on a small patch is exactly the geometry that rounds a recess. Once the bolt is in the recess and turning freely under angle, finish the snug-down with the straight-tip 193HX in the matching size; the full hex flat engages the recess and transmits torque on the whole working surface.

For the ball-tip-to-straight-tip switchover point and the working-torque threshold the shop uses to decide between the two: Hex and Torx wrenches: how to pick the right tool for the job →.
