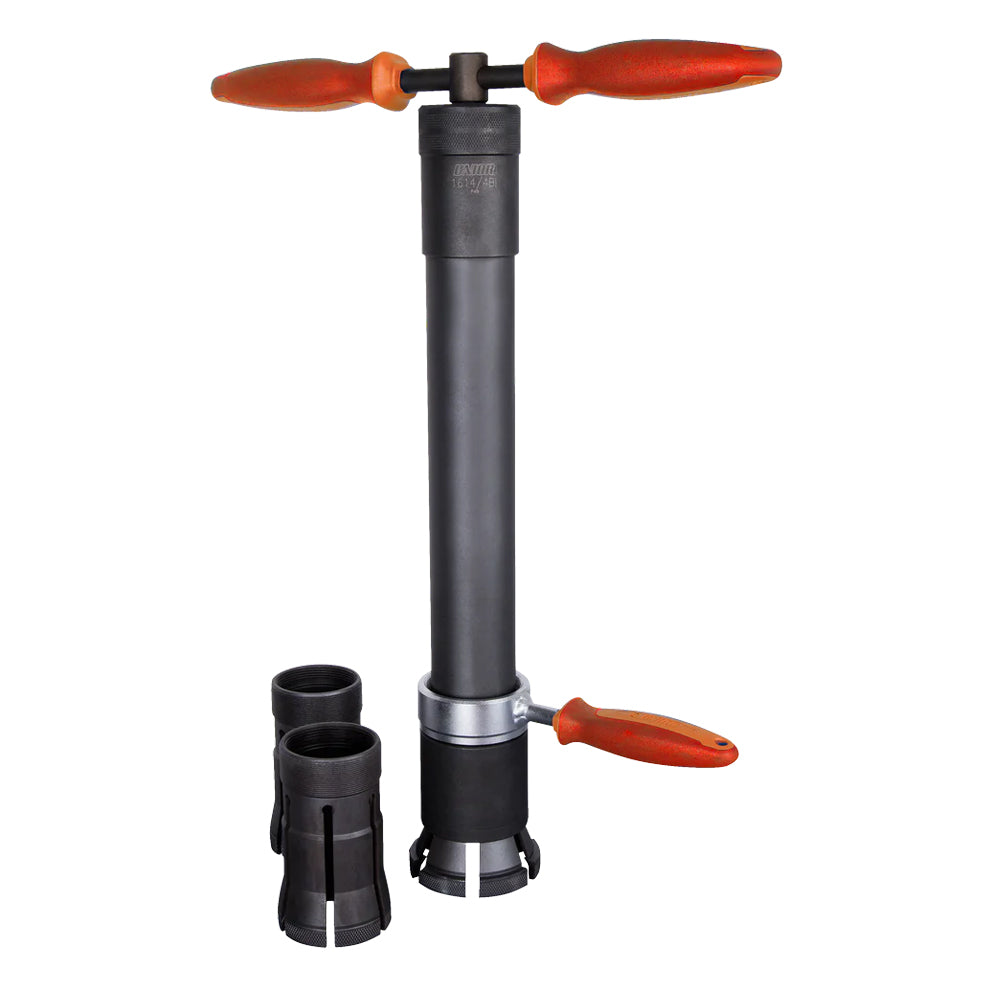

Crown Race Puller

A crown race that's been pressed onto a steerer for ten years and a thousand wet rides doesn't come off easily. The cheap method is a slot-headed screwdriver and a hammer, walked around the race until it lifts. The cheap method gouges the crown seat. A gouged crown seat means the new race won't seat squarely either; the headset rocks for the life of the fork, and the only fix at that point is a new fork. The Crown Race Puller 1614/4BI-US replaces hammer-and-screwdriver with a controlled mechanical pull that leaves the seat unmarked.

What the tool does

The puller bush slips over the race. Tighten the clamping nut to lock the bush onto the race face. Then turn the spindle, and the spindle's threads back the bush off the steerer in a straight axial motion, pulling the race off the seat with it. No percussion, no chisel marks, no chance of getting the screwdriver wedged sideways under the race. The pull happens at a controlled rate, so if the race is reluctant you can feel exactly how much force the spindle is taking and back off if you need to hose the seat with penetrating oil before continuing.

Compatibility

The 1614/4BI-US covers the four steerer / crown-race sizes that span every modern road and MTB fork:

• 1″
• 1 1/8″
• 1 1/4″
• 1 1/2″

Suspension forks, rigid forks, road, MTB, gravel, hybrid; the puller's bush set covers all of them. The only fitment outside the puller's coverage is the rare oversized tandem steerer.

Specs

• Compatible steerer sizes: 1″, 1 1/8″, 1 1/4″, 1 1/2″
• Material: premium flex plus carbon steel (Unior's house-grade designation for premium cycling tools)
• Surface finish: blackened per DIN 50938
• Operation: spindle-driven mechanical pull (no hammer needed)
• Made in Slovenia by Unior

Includes: Puller body, spindle, clamping nut, full bush set for the four steerer sizes above.

Made in Slovenia, since 1919

Unior has been forging hand tools in Zreče since 1919, and is the official technical partner of multiple World Tour and downhill teams. The 1614's body is forged from premium flex plus carbon steel and finished to DIN 50938; the spec language matches what Unior corporate publishes on its premium tool line, and the DIN reference is the citable industry detail that separates Unior's finish from generic “blackened” claims. A puller that will outlive every fork that passes through your shop is the design intent.

Pro tip from our mechanics

The crown race rarely comes off cold. Hit the race-and-seat junction with penetrating oil and let it sit overnight before you reach for the puller. Once the spindle is loaded, turn it in steady half-revolutions and pause to listen; a race that's working free makes a soft tick as it breaks contact with the seat, while a race that's stuck makes a higher-pitched bind. Pause at the bind, hit it with more oil, and let it sit another fifteen minutes before resuming.

The full crown-race-service workflow (when to pull, how to set the new race, and how the puller pairs with the matching setter) is in our walk-through: Frame prep: head tube, crown race, and star nut work →
