T-Handle Hex Wrench Set

The T-handle hex wrench is the bench mechanic’s first reach. Stem face-plates, brake-lever clamps, derailleur-cable bolts, cleat installs, bottle-cage fasteners; the everyday work that happens at the bench between bigger services runs on T-handle hex tools. The Unior 193HX T-Handle Hex Wrench Set covers the metric range that touches almost every fastener on a current-generation bike: 2 mm through 10 mm, eight wrenches plus a labeled metal holder in one set.

What’s in the set

• 2 mm; small Di2 and AXS fasteners and accessory mounts.
• 2.5 mm; small set-screws and internal shifter or lever hardware.
• 3 mm; legacy shifter and brake-lever clamp bolts.
• 4 mm; the daily-driver: stem face-plate, brake-lever clamps, bottle cage, cleats, derailleur hangers.
• 5 mm; stem steerer-clamp, seatpost binder, saddle-rail clamps, post-mount and flat-mount brake calipers.
• 6 mm; thru-axles on many front and rear wheels; some older crank and chainring bolts.
• 8 mm; pedal axles (Shimano SPD, Shimano SPD-SL, Crankbrothers, Look Keo); square-taper, Octalink and some modern splined crank bolts.
• 10 mm; Campagnolo Ultra Torque crank-spindle bolt; some legacy crank-fixing bolts.

This range covers ISO 2936 (the metric hex-key dimensional standard) across the bike-side application list.

Construction

• Shank material: chrome-vanadium steel, hardened and tempered. Chrome-vanadium is the industry-standard alloy for hex working tools; chromium gives corrosion and wear resistance, vanadium contributes grain-refinement that keeps the recess profile sharp under repeated load.
• Shank finish: chrome-plated. Bench grease, brake fluid, and parts-cleaner exposure don’t pit the shank surface.
• Tip treatment: black oxide. The black-oxide finish gives the engagement tip corrosion resistance without adding dimensional bulk; the wrench fits the fastener recess to the as-machined tolerance.
• Handle: two-component (hard core + soft outer) for an ergonomic grip and high rotational torque transfer.

Where the T-handle shape pays back

The T-handle format trades a small amount of access versatility (the T can’t reach every angle a ball-end L-key can) for a large amount of speed; the T-handle’s two-hand grip and the rotational mechanical advantage shave seconds off every fastener engagement.

For shops needing additional T-handle Torx alongside T-handle hex, the Unior 193TX T-handle Torx set covers T8 through T30. For the corner-cases the T-handle can’t reach, the 220/3 L-key set and the Y-handle 1781/2HX three-way hex tool cover the angled-access scenarios.

Built in Zreče, Slovenia

Unior has been forging hand tools in Zreče since 1919, and sponsors professional road and mountain-bike race teams. The 193HX set is manufactured to ISO 2936 dimensional tolerances and finished with the corrosion-and-fit-preserving black-oxide tip treatment that the Unior hex/Torx line is built around.

Pro tip from our mechanics

A T-handle hex set is one of the two tools every bench should have in the top drawer (alongside a T-handle Torx set). Once a mechanic gets used to the T-handle’s rotational speed, returning to L-keys for everyday work feels like a downgrade. Our broader workshop-setup guide covers the hex/Torx wrench-format decisions and the everyday-tool placement that compresses tool-finding time: How to set up a professional bike workshop →

FAQ

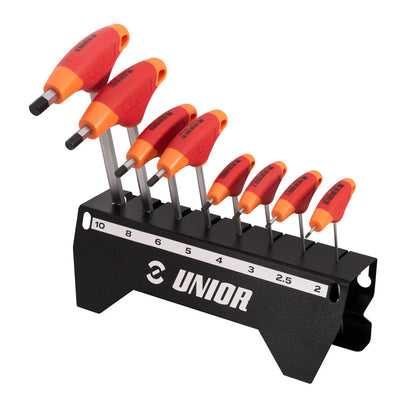

Which hex sizes are in the set? Eight T-handle wrenches: 2, 2.5, 3, 4, 5, 6, 8 and 10 mm. That is the metric span a modern bike uses for stem face plates, brake levers, seatposts, pedal axles and most crank bolts, and the holder has a labeled cutout for each size.

Can I replace a single wrench without buying a new set? Yes. Every size in this set is sold individually as the Unior T-Handle Hex Wrench 193HX-US, and the metal holder is also available separately as h.TW-HX, so a lost or worn wrench never retires the whole set.

What are the wrenches made of? Each blade is premium chrome-vanadium steel, chrome-plated along the shaft with a black-oxide-coated tip. The black oxide protects the tip without adding thickness, so it seats in the recess at machined tolerance. The two-component T-handle is molded polypropylene.

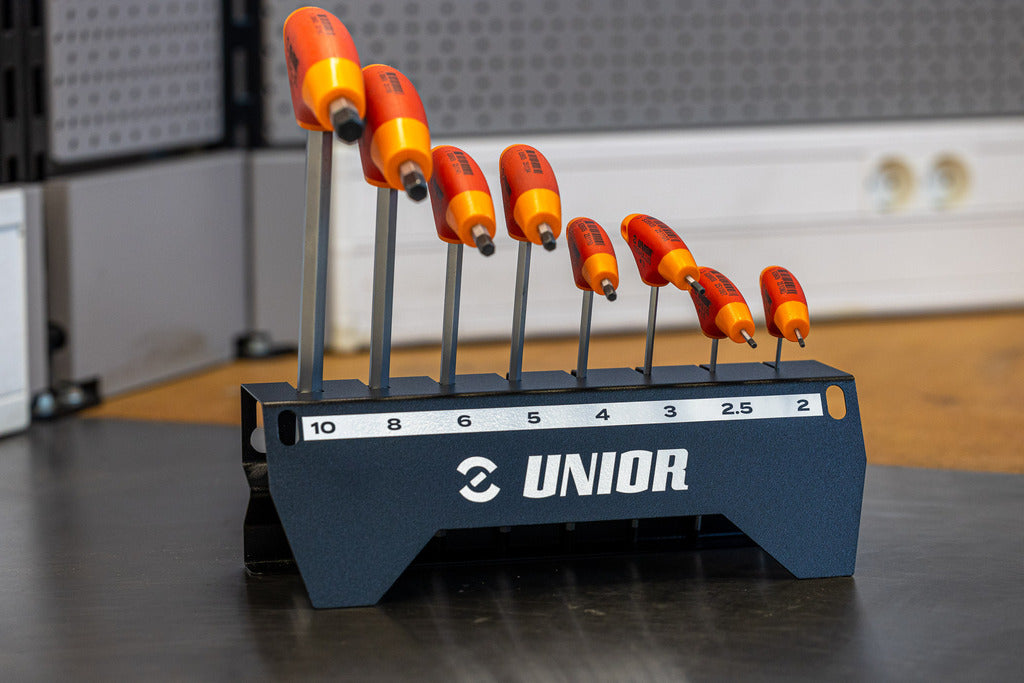

How does the holder mount in the workshop? The holder is metal, sized for the 193HX wrenches, and punched to hang on a Unior perforated back panel. Each of the eight cutouts is labeled 10 through 2 mm, so every wrench has a marked home. It also stands on the bench — that is how the official product photos show it.
