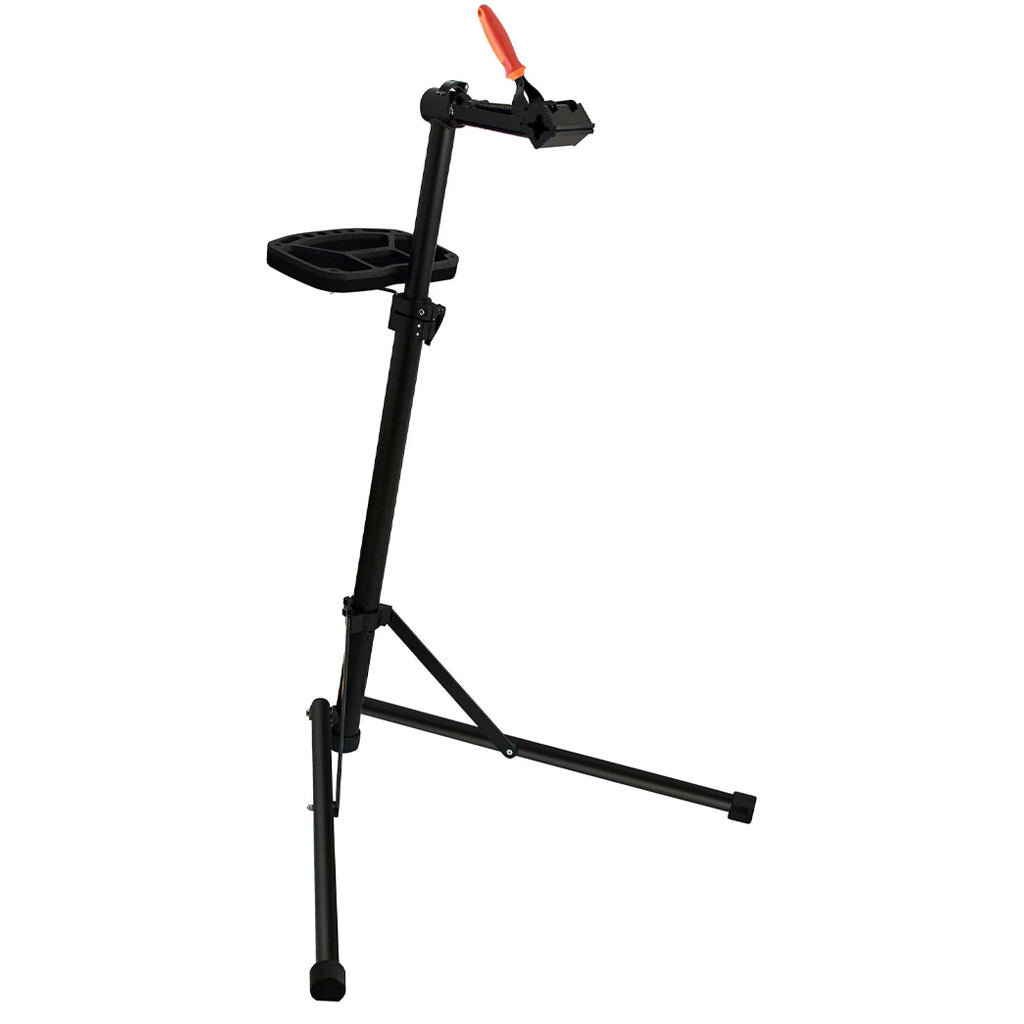

BikeGator+ Repair Stand, Manually adjustable

The BikeGator+ Manually Adjustable pairs the refined 1693A+ stand body with the cam-style manual clamp, the lever-and-threaded-handle design that experienced shop mechanics know without thinking. A separate handle dials in the jaw to the tube diameter; the lever closes and opens the jaw against that setting. Two motions instead of one, but every motion is deliberate and the clamp pressure stays exactly where you left it from one bike to the next.

For a portable stand that sees the same bike (or the same few bikes) over a session, manual adjustment is faster than auto. Set the jaw once at the start of the morning, swap bikes by working the lever; the pressure is dialed-in, the bike sits where you put it, no recalibration happens between bikes that share a tube diameter. Where the auto-adjust pays back is rapid swapping of bikes with different diameters; where the manual pays back is steady work on similar bikes, where the predictability of the setting is worth more than the speed of the swap.

The BikeGator+ generation upgrades the original portable's sliding system, the jaw mount and rotation system, and the precision aluminum and steel parts mix. Same 5.7 kg folded weight, same 30 kg working load, same fold-to-pack form factor as the original BikeGator; the BikeGator+ refines the parts the working mechanics asked the field-test team to revisit. The metal tool tray with interchangeable SOS foam insert is the workshop-grade detail that lifts the BikeGator+ family above the entry portables: bits, axles, bolts have a place to land that isn't the asphalt.

Specs

• Article number: 1693AS-US
• Folded weight (without tool tray): 5.7 kg; height 980–1550 mm
• Working load capacity: 30 kg
• Clamp: Manually adjustable cam-style, 24–40 mm tube range
• Replaceable rubber jaw covers: Unior 1693.11
• New jaw mount and rotation system; improved sliding system
• Precision aluminum and steel parts construction
• Metal tool tray with interchangeable SOS foam insert

Includes: folding stand body with refined sliding system, manually adjustable cam-style clamp head pre-installed with rubber jaw covers, metal tool tray with SOS foam insert.

Built in Zreče, Slovenia

Unior has been forging hand tools in Zreče since 1919, and sponsors professional road and mountain-bike race teams. The manually adjustable cam clamp is the mechanism that survived from the original 1693A line into the BikeGator+ refresh because it's the mechanism workshop mechanics keep asking for; predictable, repeatable, no electronics to fail at a wet-grass race start. The BikeGator+ generation didn't replace it, it just improved the body around it.

Pro tip from our mechanics

The manual cam clamp is what you reach for when you want one fewer thing to think about during the work. The threaded handle is the place where the clamp pressure is decided and stays decided; the lever does only one job. For mechanics whose stand spends the morning on a single bike for a tune-up or build session, this is the clamp that matches the work. The cam-versus-QR question gets covered alongside the rest of the stand-selection trade-offs here: How to choose a bike repair stand →

FAQ

How does the manually adjustable clamp work? On 1693AS you set the jaw opening by turning the long screw by hand, then put the open jaw on the seatpost or frame tube and turn the handle until it grips. Flip the handle to release. The jaw also rotates: release its lever and set the angle before you clamp.

What tube sizes and bike weights does it take? The jaws are rated for tubes from 24 mm to 40 mm in diameter. Maximum load capacity is 30 kg. Some bike makers advise against clamping thin-walled carbon frames; check the manufacturer and clean the tube before you clamp.

What is included, and how is BikeGator+ different from the original BikeGator? The 1693AS-US ships with the folding stand, the manually adjustable clamp with 1693.11 rubber jaw covers, and a metal tool tray with an interchangeable SOS foam insert. The Plus generation adds the new jaw-mount and rotation system and an improved sliding system. A carrying bag is not listed as included.

How tall is it, and does it fold? Working height adjusts from 980 mm to 1550 mm (release the column lever and slide the top tube). The three support tubes fold together for transport. Weight without the tool tray is 5.7 kg. Replacement jaw covers are article 1693.11.
