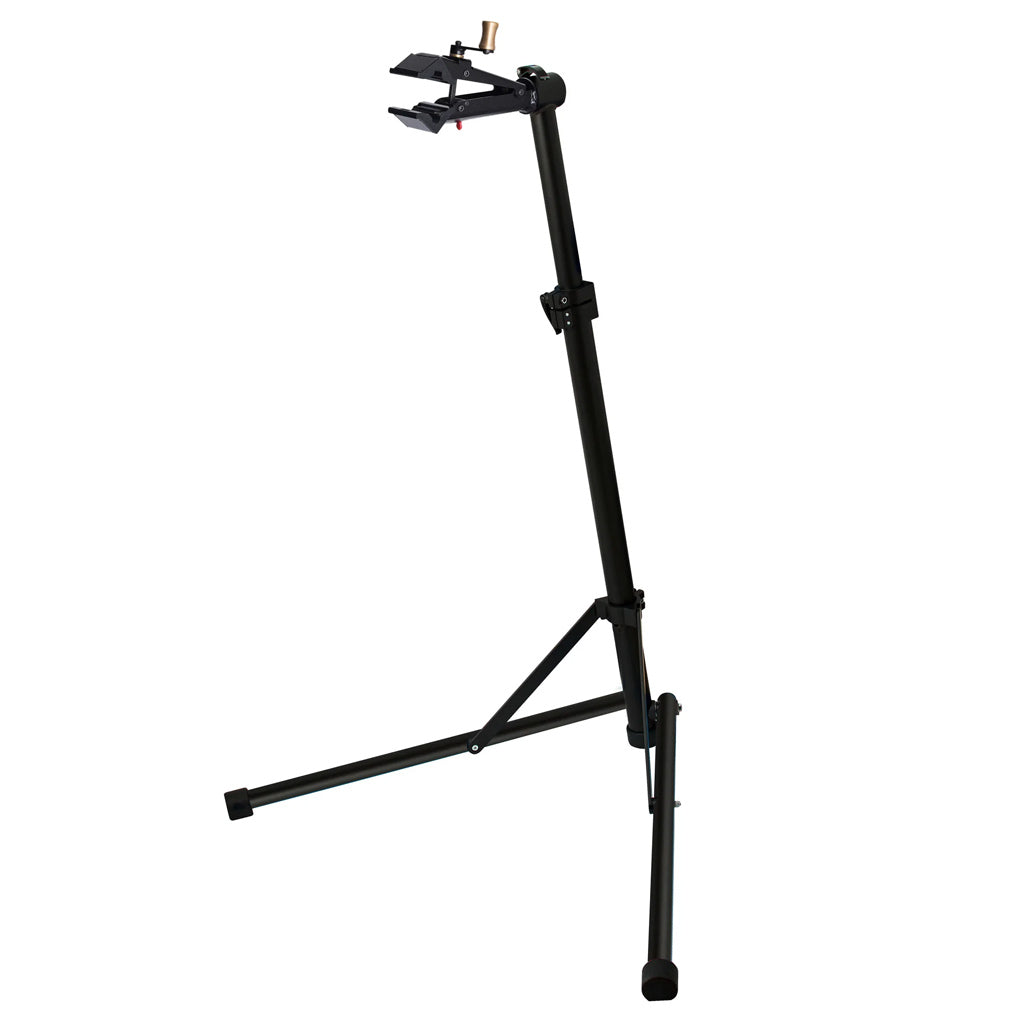

BikeGator Repair Stand, Quick Release

The BikeGator Quick Release is the base BikeGator portable stand fitted with the Pro Shop quick-release clamp, the same clamp head we ship on our shop-floor 1693 series stands. Squeeze the jaws by hand until they hold the tube, then turn the rotating handle to add clamp force. To release, turn the handle the other way first, then press the quick-release button; using the button alone can damage the lock and void the warranty.

This 1693AQ0 is Unior's current BikeGator generation of the 1693A/1693AS stand: folding support tubes, a new jaw mount and rotation system, an improved sliding system, and precision aluminum and steel parts. Height adjusts from 980 to 1500 mm. The stand weighs 5.7 kg without a tool tray and is rated to 30 kg. The QR clamp is the differentiator versus the official manual BikeGator (1693AS0-US), which is specified for 24 to 40 mm tubes.

The clamp's 22 to 60 mm tube range is the widest in our portable line. It covers standard 30 mm round seatposts, deep aero seatposts, modern oversized top tubes, and the 60 mm tubes you find on some downhill bikes and most cargo e-bikes; the official manual BikeGator (1693AS0-US) is specified for 24 to 40 mm tubes, which covers a typical road and gravel mix but not the 60 mm end of this QR clamp.

Specs

• Article number: 1693AQ0
• Weight without tool tray: 5.7 kg
• Working load capacity: 30 kg
• Height adjustment: 980–1500 mm
• Clamp: Pro Shop quick-release, 22–60 mm tube range
• Replaceable rubber jaw covers: Unior 1693.11
• New jaw mount and rotation system; improved sliding system
• Precision aluminum and steel parts construction

Includes: folding stand body, Pro Shop quick-release clamp head pre-installed with rubber jaw covers.

Built in Zreče, Slovenia

Unior has been forging hand tools in Zreče since 1919, and sponsors professional road and mountain-bike race teams. The Pro Shop quick-release clamp head fitted to this portable is the same head specified on our 1693 shop-floor stands; the design didn't get downgraded to fit a portable price point, the portable got a shop-floor head. The 22 to 60 mm tube range is what makes this BikeGator the right call for a mixed-bike workshop where the next bike through the door could be a road bike, a gravel rig, or a cargo e-bike.

Pro tip from our mechanics

The official BikeGator foldable line currently splits on the clamp: this 1693AQ0 carries the Pro Shop QR (22–60 mm, any shape); the 1693AS0-US carries the manual clamp (24–40 mm). Same folding body, same 980–1500 mm height, same 30 kg rating. The broader portable-versus-shop-stand decision sits here: How to choose a bike repair stand →

FAQ

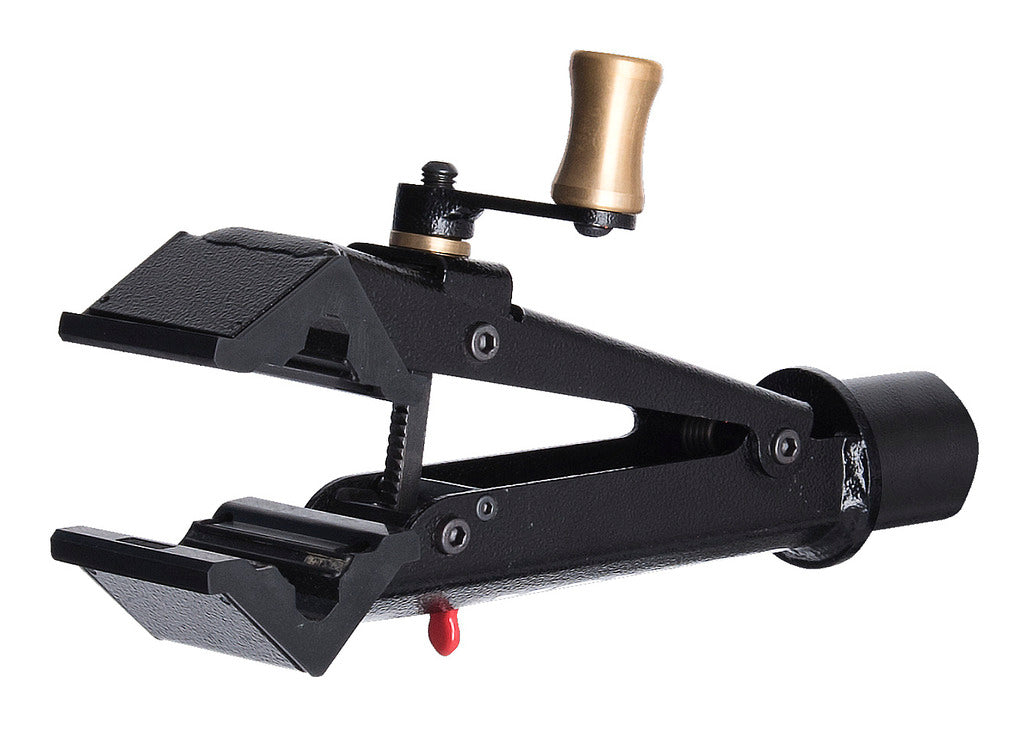

How do I use the Pro Shop quick-release clamp on the 1693AQ0? Squeeze the jaws by hand until they hold the tube, then turn the rotating handle to add clamp force. To take the bike out, turn the handle the other way first and only then press the red quick-release button. Unior warns that opening the clamp with the button alone can damage the lock and void the warranty.

What tube sizes does the BikeGator QR hold? The fitted Pro Shop Clamp (1693.1Q) takes tubes of any shape from 22 mm to 60 mm. Jaw height is 70 mm, which Unior specifies for smaller seatposts and dropper posts. The official manual BikeGator (1693AS0-US) is a different clamp, specified 24–40 mm.

Does the 1693AQ0 include a tool tray or carry bag? No. Unior lists the weight as 5.7 kg without a tool tray. The 1693.3 tray and the 1693BAG carry bag are official accessories sold separately, as are the 1693.11 rubber jaw covers and the 1693.1Q-SP.1 rebuild kit.

How does the BikeGator QR ship? It is an oversized item, so it is not eligible for the free-shipping tier. It ships at the rate shown at checkout and can only be delivered within the continental United States. If the rest of your cart qualifies for free shipping, ordering the stand separately keeps that option available for the smaller items.
