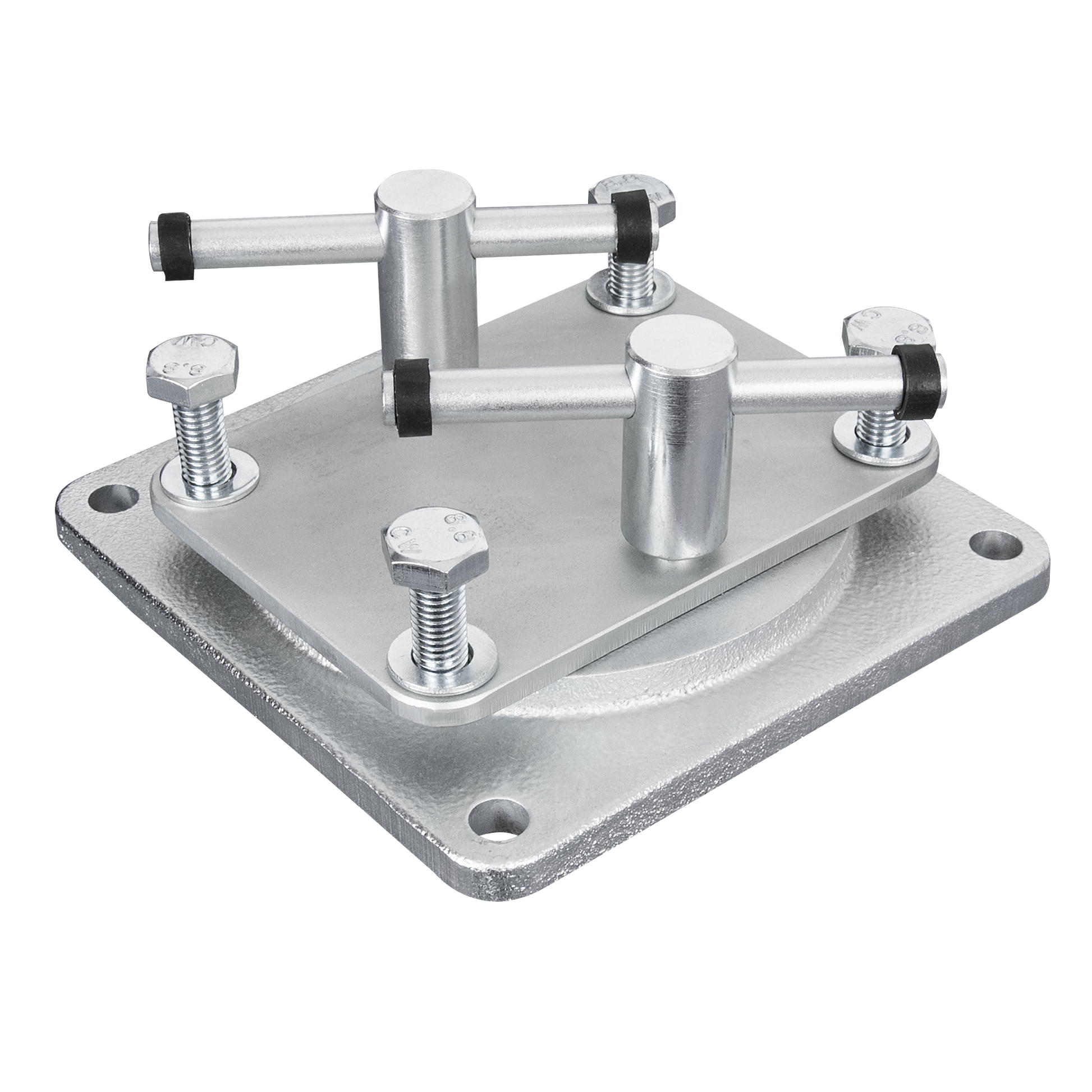

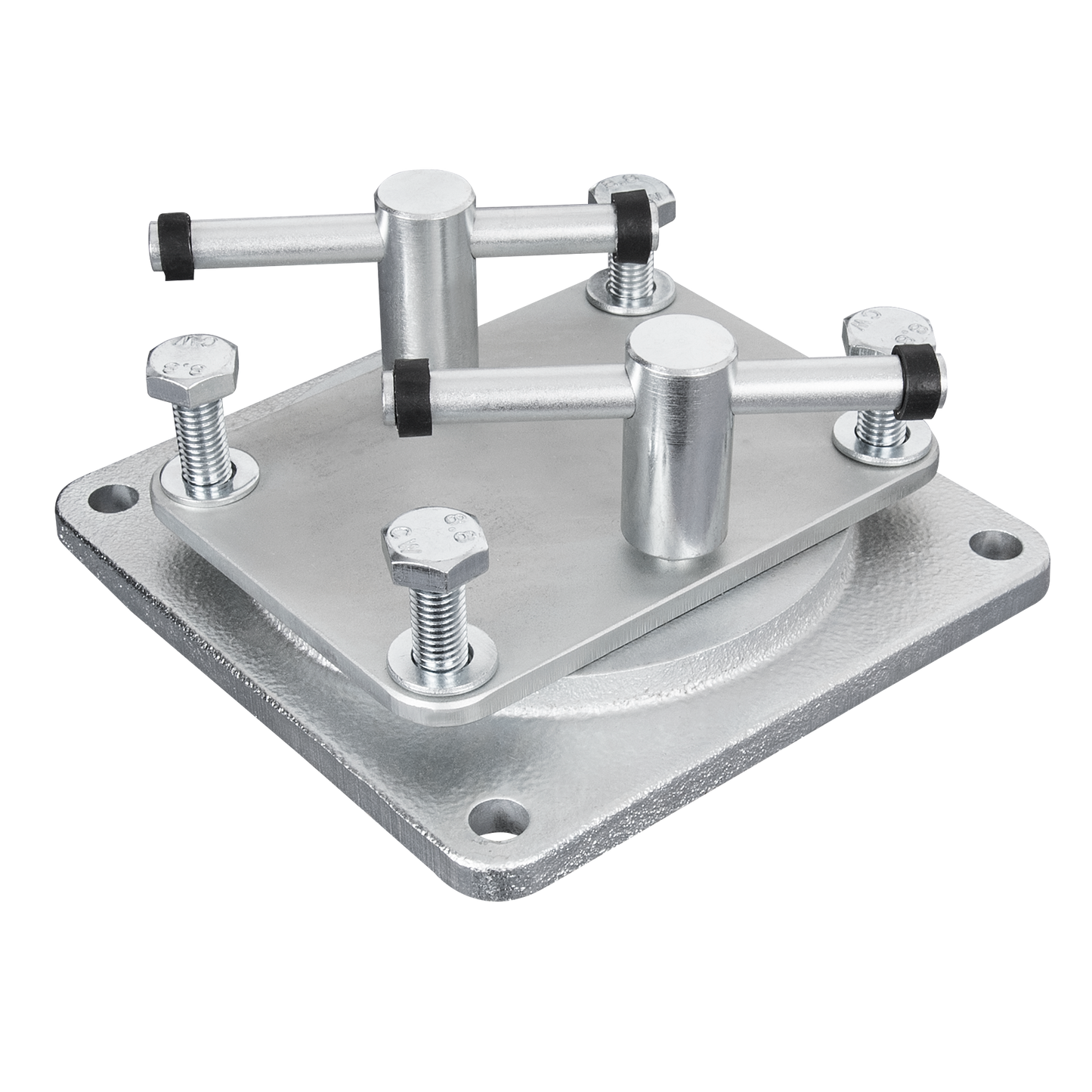

360° swivel base for Unior's 150 mm-jaw bench vises, including the 150 mm IRONGATOR. Bolts to the bench through four ø13 mm holes on a 160 × 160 mm square and adds 87.5 mm of height; the vise mounts on the rotating disc. Grey cast iron plate, 5.24 kg, lifetime warranty.
Out of stock
Couldn't load pickup availability
Free US shipping on orders $75+
Some exceptions apply — see shipping policy
Forged in Zreče, Slovenia since 1919. Sponsors professional road and mountain-bike race teams.
The 721.1/6 swivel base mounts between the bench and a 150 mm-jaw Unior vise and lets the whole vise rotate 360°. Instead of unclamping a workpiece and re-setting it to reach the far side, you swing the vise to the angle the job needs and keep working.
That matters on a bike-shop bench. A vise is the second purchase after the repair stand, and the jobs it earns its keep on (cutting a steerer, trimming a seatpost, pressing a bushing, holding a stem) each want the work presented square to the saw or press. A fixed vise makes you walk around the work; a swivel base brings the work around to you. Our workshop setup guide treats the bench vise as its own station next to the stand.
Fitment
This is the 150 mm size of the base, code 621569. It fits the 150 mm-jaw vises in the 721 family: the 721/6 (621567), the 721Q/6 (621568), and the 150 mm IRONGATOR (721Q/6-US, 625131) sold here. If your vise is the 125 mm IRONGATOR, this base is the wrong size; you want the 125 mm swivel base, code 621483, instead.
Mounting
The base bolts to the bench through the four ø13 mm holes in its corners, set on a 160 × 160 mm square, and the vise then bolts onto the base's rotating disc. Official assembly hardware for this size is four M12×30 bolts plus four washers. The bench pattern is the base's own, not the vise's, so retrofitting under an already-mounted vise means re-drilling the bench. Unior's guidance: use bolts in all of the holes, with lock washers, so nothing works loose under load. The base raises the vise by 87.5 mm.
Specs
- Article number: 721.1/6 (150 mm size, code 621569)
- Fits: 721/6, 721Q/6, and 721Q/6-US (150 mm IRONGATOR) bench vises
- Rotation: 360°

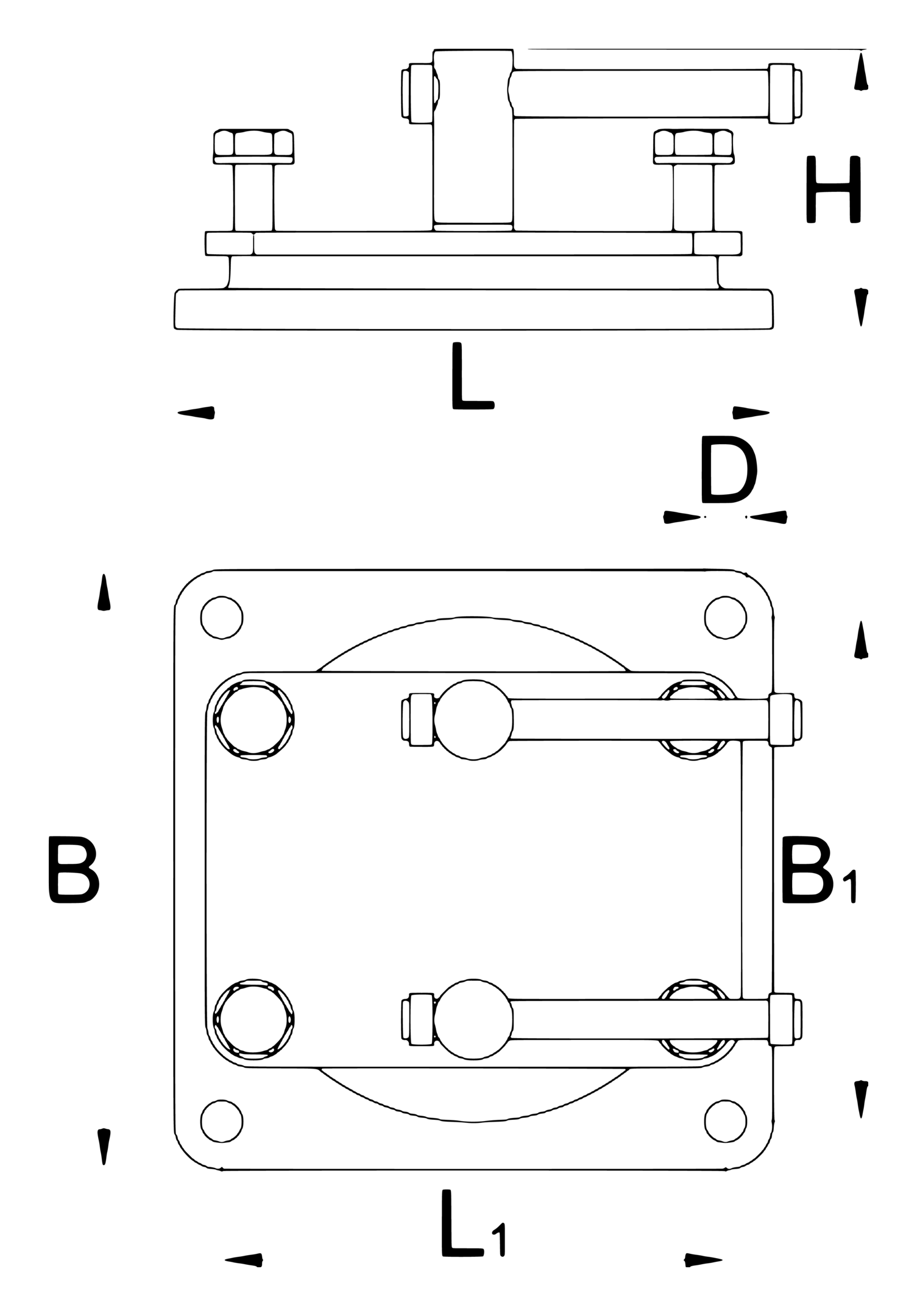

- Base plate: 190 × 190 mm, grey cast iron; other parts special tool steel
- Added height under the vise: 87.5 mm
- Bench bolt pattern: 160 × 160 mm, four ø13 mm holes
- Assembly hardware (this size): M12×30, four bolts and four washers
- Weight: 5.24 kg
- Lifetime warranty
Built in Zreče, Slovenia
Unior has been forging hand tools in Zreče since 1919. The 721.1/6 follows the house recipe: grey cast iron for the base plate, special tool steel for the other parts, and a lifetime warranty behind it. Grey cast iron is an iron and carbon casting alloy with flake graphite in its structure, not a steel; the graphite damps vibration, and the material is far stronger in compression than in tension, which is why vise bodies and machine bases have been cast from it for over a century.
Pro tip from our mechanics
Mock up the 87.5 mm of added height against your saw and press working heights before you drill the 160 × 160 mm pattern. Then run M12×30 bolts in all four ø13 mm holes with lock washers, per Unior's guidance, so the base cannot work loose as you swing the vise. Soft-jaw inserts for the 150 mm vise (722.1AL, code 619027) slide over the steel jaws when you are clamping alloy or polished parts.
How to set up a professional bike workshop →
FAQ
Which vises does this swivel base fit? It fits the 150 mm-jaw vises in Unior's 721 family: the 721/6 (code 621567), the 721Q/6 (code 621568), and the 721Q/6-US sold here as the 150 mm IRONGATOR bench vise (code 625131). This listing is the 150 mm size of the 721.1/6 base, code 621569.
Does it fit the 125 mm IRONGATOR vise? No. The 125 mm IRONGATOR takes the 125 mm size of this base, code 621483, which we sell as a separate listing. The base on this page, code 621569, fits the 150 mm-jaw vises only.
Do I have to re-drill my bench to fit it? If your vise is already mounted, yes. The base bolts to the bench through its own four corner holes, 13 mm diameter on a 160 x 160 mm square, using M12x30 bolts and washers, and that pattern is not the same as the vise's direct mounting pattern. The vise then bolts onto the base's rotating disc. Unior's guidance is to use bolts in all of the holes, with lock washers.
How much height does the base add under the vise? 87.5 mm, about 3.44 inches. A vise mounted on the base sits that much higher than one bolted straight to the bench, so check the resulting jaw height against your working height before you drill.
