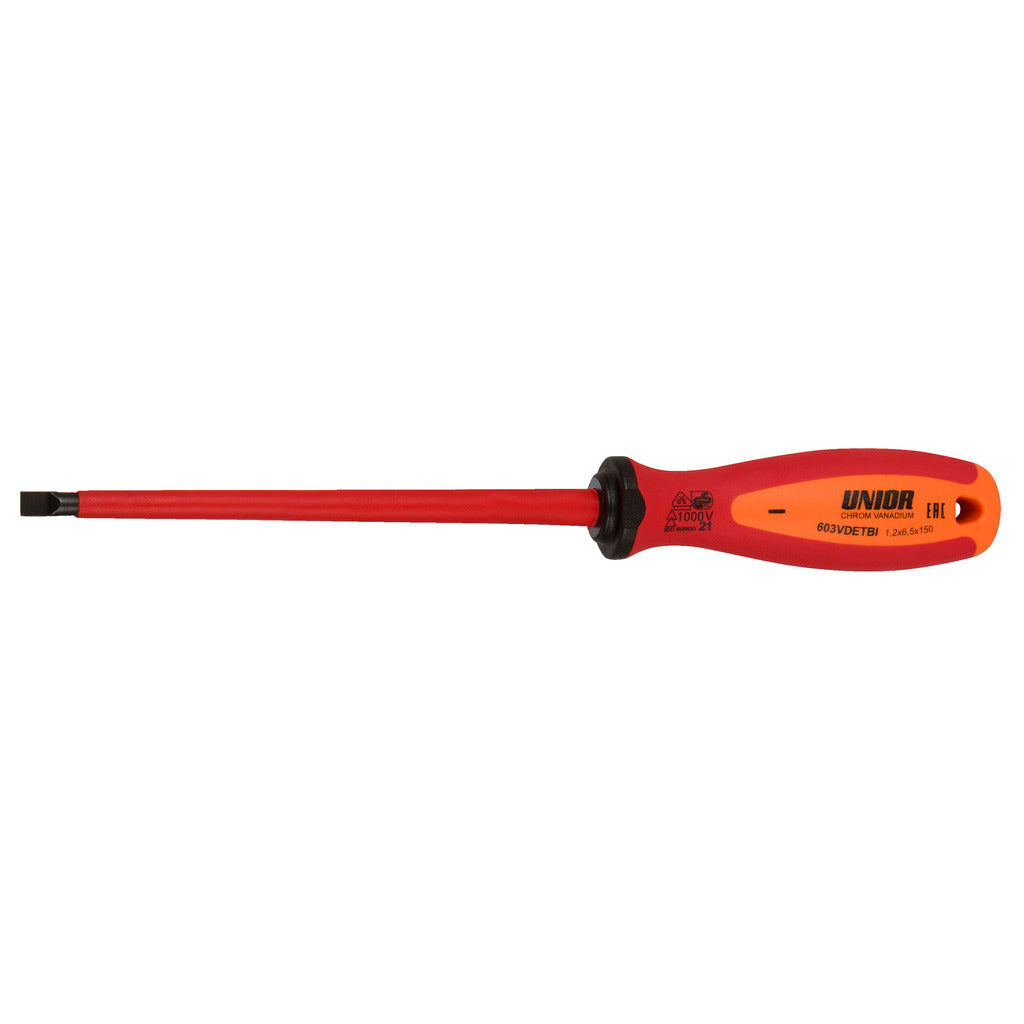

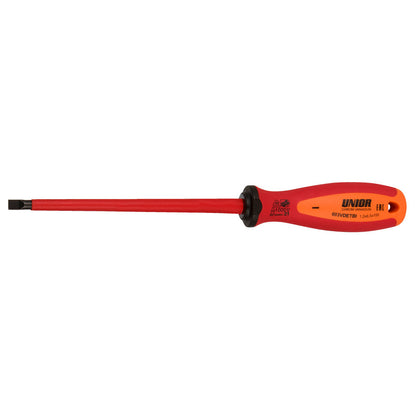

Electrician´s screwdriver with insulated blade, VDE TBI

E-bikes service work introduces a class of fasteners no mechanic seeing only acoustic bikes ever needs to handle: screws and bolts near live battery terminals, near motor power leads, near display heads with mains-charging contacts. A standard screwdriver works mechanically, but the moment the blade touches a live terminal the mechanic completes a circuit they didn't want to be in. The VDE-rated insulated screwdriver eliminates that risk for the work it was designed for.

The VDE TBI is the insulated electrician's screwdriver Unior makes for the modern e-bike workshop. The blade is premium hard chrome-vanadium steel, entirely hardened and tempered. The insulation runs the full length of the blade except for the working tip, and the insulation is rated to DIN EN IEC 60900 (VDE 0682-201):2019-04; the European standard for tools insulated for live electrical work. The working tip is blackened (a corrosion-resistant black-oxide finish) so the tip doesn't pick up dirt that could conduct.

What VDE-rating actually means

VDE certification involves submerging the insulated tool in water and testing for current leakage at 10,000 V AC. A passing tool has continuous insulation along its full insulated length with no conductive path from blade to handle. The same test confirms the insulation won't crack under cold-cycle or bend testing. The standard is overkill for the voltages an e-bike system actually carries (most are 36 V or 48 V), but the same insulation is the practical choice because the certification ensures the insulation doesn't fail when the blade flexes against a tight fastener.

The handle is a three-component composite: hard core for torque transmission, softer outer for grip, with an ergonomic shape that fits a working palm. The shape isn't decorative; at the torque a stuck e-bike battery-tray screw demands, a slim handle costs you torque, and a slick handle costs you control.

When to use it

• Removing or installing screws on e-bike battery-tray covers
• Working on motor-display head fasteners where the head sits adjacent to charging contacts
• Service on motor-cover screws on most current-generation e-bike platforms
• Any electrical work on the bench (charger wiring, ohmmeter probes, breaker fasteners)

For standard non-electrical screwdriver work, see our other screwdriver lines. The VDE TBI is the right tool for the electrical adjacency; using it for non-electrical work is fine but the insulation is overkill there.

Specs

• Blade: hard chrome-vanadium steel, hardened and tempered
• Tip: blackened (black-oxide) finish
• Insulation: DIN EN IEC 60900 (VDE 0682-201):2019-04 certified
• Made to ISO 8764-1,2
• Handle: three-component ergonomic composite with hanging hole

Built in Zreče, Slovenia

Unior has been forging hand tools in Zreče since 1919, and is the official technical partner of multiple World Tour and downhill teams. The VDE-rated tool line is part of Unior's broader hand-tool catalog, and the VDE TBI in particular came into the cycling catalog as e-bike service became a normal shop workflow. Same chrome-vanadium steel and hardening as the rest of the workshop screwdriver line; the insulation is what makes it different.

Pro tip from our mechanics

An e-bike workshop service flow that doesn't separate electrical-adjacent fasteners from mechanical fasteners eventually finds the mechanic working a live circuit with the wrong tool. The VDE TBI on the electrical tray means you reach for it first when the work is near the battery. Our workshop hand tools guide covers the rest of the workshop hand-tool layer that supports a modern shop: Workshop hand tools every bike shop needs →
