Master Wheel Building Kit

Wheel-building is the workshop task that costs the most when you start without the right tools. Build the first wheel without a nipple driver and the spoke prep is twice the work; build it without the nipple insertion tool and seating nipples through a double-wall rim is the slowest step on the bench.

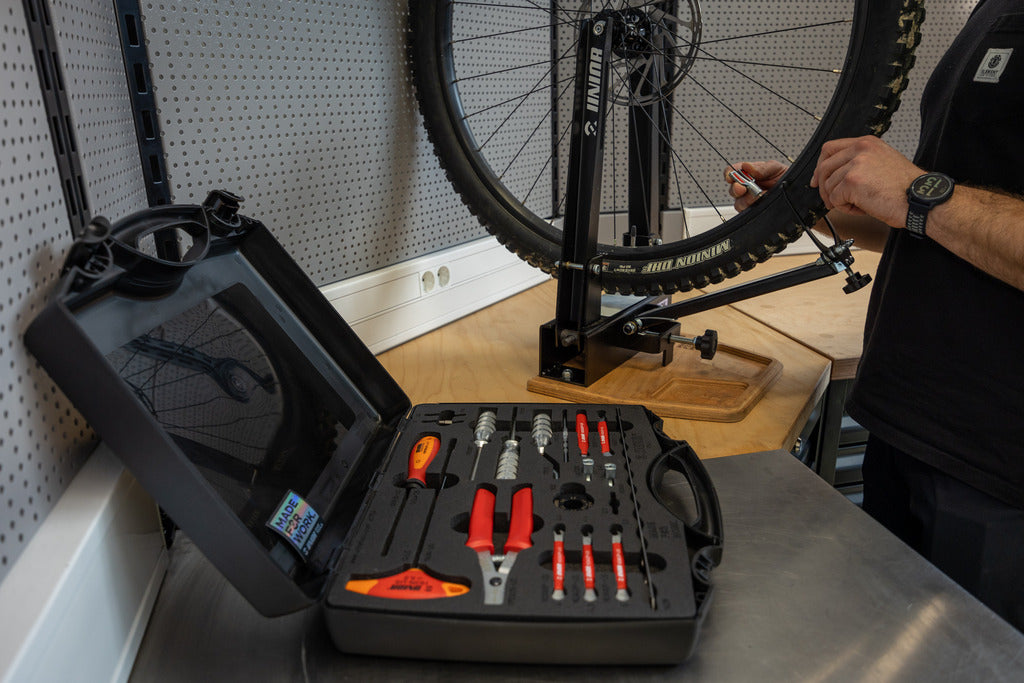

The Master Wheel Building Kit 1754 is the curated set for the workflow. 19 wheel-specific tools in a workshop-grade storage box with pre-cut foam inlays, sized to take a wheel build from loose components to a true, evenly tensioned finished wheel.

What the kit covers

The 19-tool selection covers the full wheel-build:

• Nipple service: nipple driver and nipple insertion tool. The insertion tool makes seating nipples through double-wall rims quick and easy, removing the most repetitive bottleneck in the build.
• Spoke wrenches: sized to the most common nipple types in current wheel construction.
• 1629 gauge: the 1629 in the box is a spoke-length, bearing and cotter gauge, not a dishing tool.
• Tension meter (not included): the 1754 does not include a spoke tension meter. Add the 1752/2 when you want numeric per-spoke tension.
• General wheel-bench tools: the small-fastener and adjustment spread the build calls for at the bench.

Material and construction

Manufactured from high-quality carbon steel to ensure minimal wear to the tools themselves and to the wheel components being worked on. Tools that contact rim and nipple surfaces are sized so the contact patch is the spec, not a coincidence; the working surfaces meet the same shop-bench standard as Unior's broader workshop hand-tool line.

Storage

Compact two-layer foam storage box with cutouts sized to each tool. The kit lives on a wheel-build bench or rolls into a service area for an occasional build session.

Specs

• 19-piece wheel-building tool selection
• High-quality carbon steel construction
• Compact two-layer foam storage box with pre-cut inlays
• Includes nipple drivers and insertion tool, DT Swiss SQUORX and inverted-square drivers, spoke wrenches for common nipple types, 1629 spoke-length gauge, flat spoke holder, straight-pull pliers, 5.5 mm T-handle
• Sized for professional or home mechanic use

The 19 wheel-building tools and the two-layer foam storage box are itemized in the In the box list below.

Built in Zreče, Slovenia

Unior has been forging hand tools in Zreče since 1919, and sponsors professional road and mountain-bike race teams. The Master Wheel Building Kit is the dedicated wheel-bench set; the high-quality carbon-steel construction is the build choice that lets a single set last across thousands of nipples and tens of thousands of spoke-thread turns.

Pro tip from our mechanics

A wheel-building kit pays back the first build, not the tenth. The hours saved on tool-hunting and the wheel quality on the bench are visible from the first try. For shops where wheel-building is a regular bench task, pair the 1754 with a spoke tension meter for repeatable per-spoke tension control across builds.

How to choose the right bike tool kit →

FAQ

What tools are in the Master Wheel Building Kit 1754? Unior's official copy lists 19 wheel-specific tools in a two-layer foam box: 1.5 mm and 2.5 mm speed nipple bits, the DT Swiss SQUORX nipple tool, inverted-square and standard nipple drivers, the nipple insertion tool, Mavic R-sys and Mavic spoke wrenches, the 1629 spoke/bearing/cotter gauge, three 1630/5 spoke wrenches (TX20, 3.3 mm, 3.45 mm), the 1633/2P-US 4.0 x 4.4 mm wrench, the 1634/2P-US Shimano 4.3 x 4.4 mm wrench, the 1636/2P-US 5.0 x 5.5 mm wrench, a 5.5 mm T-handle socket, the 1632 flat spoke holder, and 1753/2B-US straight-pull spoke pliers. The itemized list is in the In the box accordion.

Does the 1754 include a spoke tension meter, dishing tool, or truing stand? No. The official 19-tool list has none of those. The 1629 in the box is a spoke-length, bearing and cotter gauge, not a dishing tool. For numeric per-spoke tension, add the 1752/2 spoke tension meter. A truing stand is a separate bench tool.

Which nipple types do the wrenches in the kit cover? The wrenches in the box cover TX20, 3.3, 3.45, 4.0, 4.3, 4.4, 5.0 and 5.5 mm, plus Mavic and Mavic R-sys nipples and the DT Swiss SQUORX driver. Unior's kit page also lists 3.23 mm among the covered sizes. The nipple insertion tool is specified for seating nipples through double-wall rims.

Can I buy the 1754 tools separately? Several pieces are also sold on their own on this site: nipple driver 1751/2, inverted-square driver 1751/2Q, insertion tool 1751/2T, the 1629 gauge, 1632 holder, 1633/2P-US, 1636/2P-US, 1753/2B-US pliers, the 193N-US T-handle, and the Mavic wrenches. The 1751/2DT SQUORX driver and 1634/2P-US Shimano wrench are kit pieces we do not currently list as standalone products.
